Toyota SAI — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

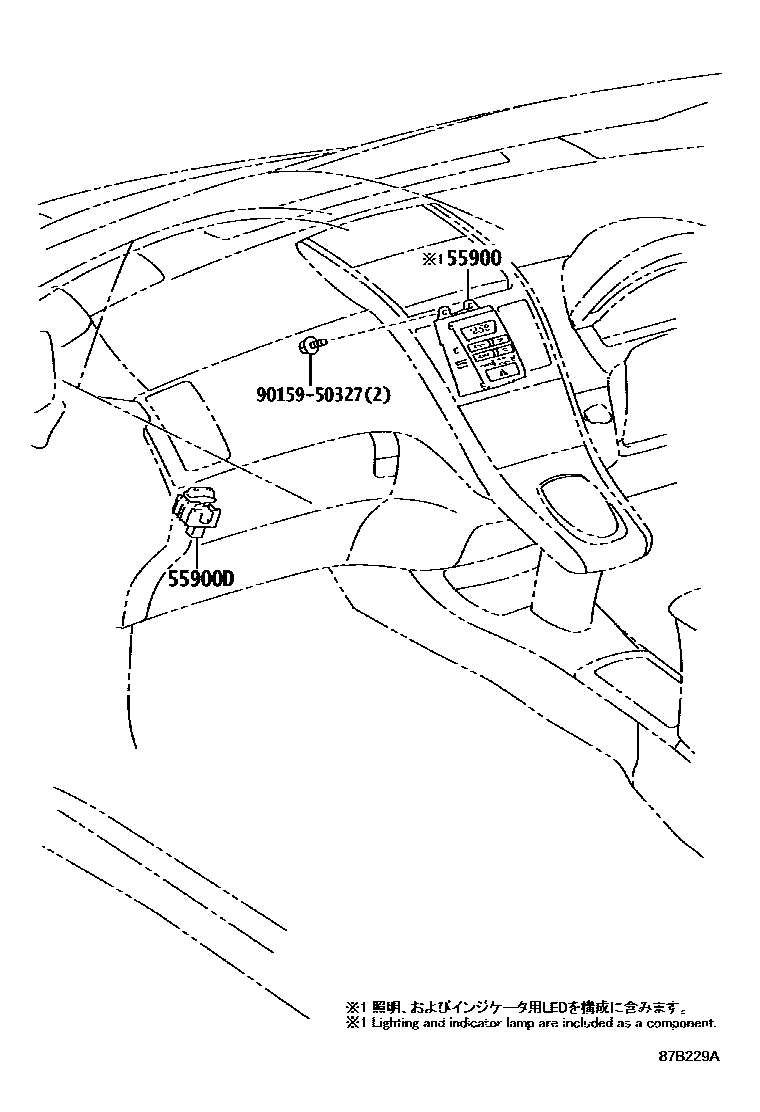

55900CONTROL ASSY, AIR CONDITIONER

main55900-75020i200911-201207

main55900-75021supersedes 55900-75051i201208-201308

main55900-75040i201308

main55900-75080supersedes 55900-75051i201308-201407

main55900-75081supersedes 55900-75051i201408

55900DCONTROL ASSY, AIR CONDITIONER, NO.2

main55900-75030i200911-201308

main55900-75070i201308

9015950327

main90159-50327

3 parts on this diagram · 4 diagrams in section

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT for Toyota SAI

This section contains 30 genuine Toyota parts for the HEATING & AIR CONDITIONING - CONTROL & AIR DUCT system of the Toyota SAI. Key components include: DUCT SUB-ASSY, HEATER TO REGISTER, NO.1, DUCT SUB-ASSY, HEATER TO REGISTER, NO.3, DUCT, HEATER TO REGISTER, NO.2, CONTROL ASSY, AIR CONDITIONER, CONTROL ASSY, AIR CONDITIONER, NO.2.
