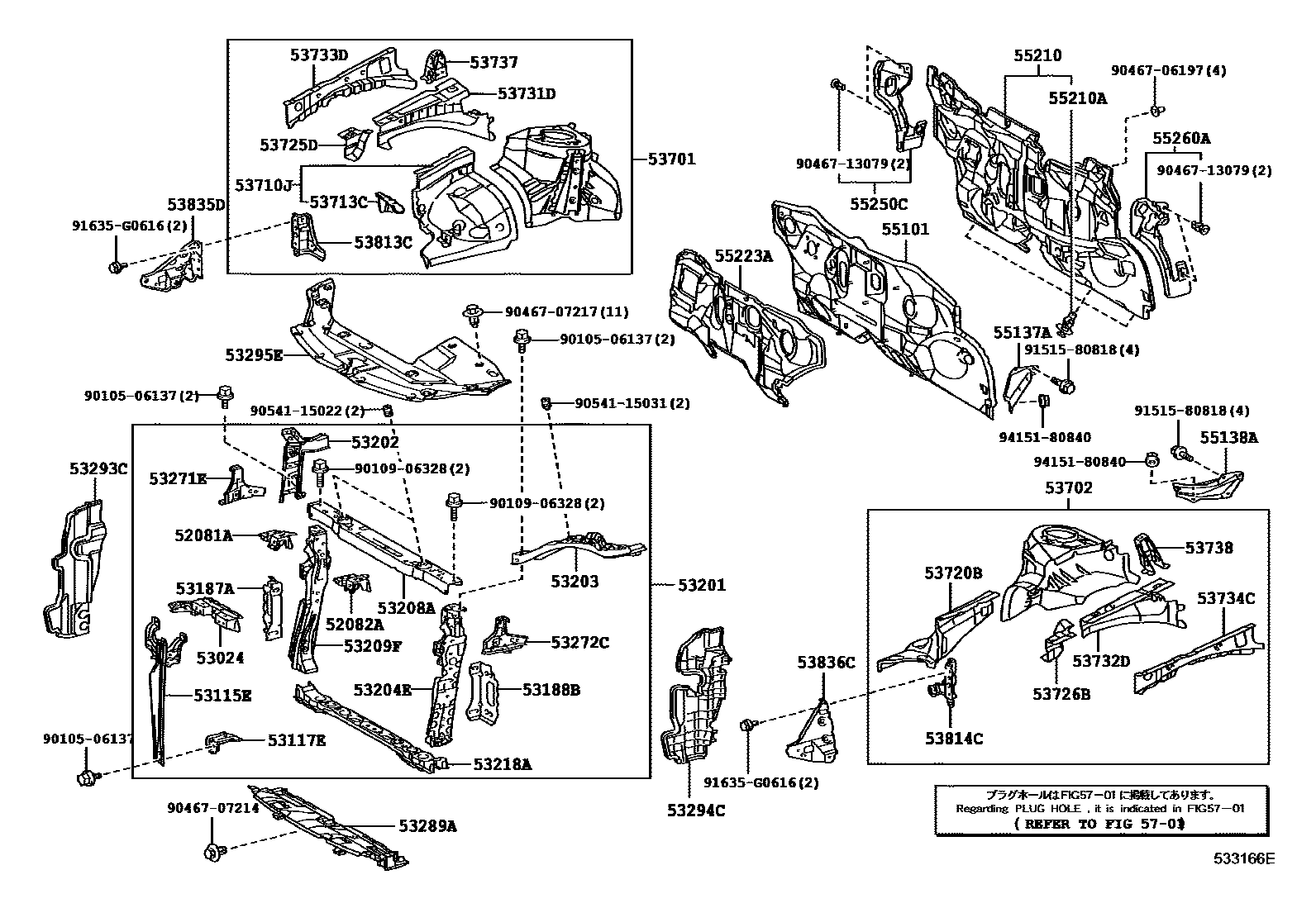

Toyota SAI — FRONT FENDER APRON & DASH PANEL
52081ASTAY SUB-ASSY, FRONT BUMPER, RH
52082ASTAY SUB-ASSY, FRONT BUMPER, LH
53024REINFORCEMENT SUB-ASSY, RADIATOR SUPPORT
53115EBRACKET, RADIATOR GRILLE
53117EBRACKET, RADIATOR GRILLE, LOWER
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH
53218ASUPPORT, RADIATOR, LOWER
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53289ACOVER, RADIATOR SUPPORT OPENING
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53295ESEAL, COOL AIR INTAKE DUCT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53710JAPRON ASSY, FRONT FENDER, RH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53720BAPRON ASSY, FRONT FENDER, LH
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53835DBRACKET, FRONT SIDE PANEL, RH
53836CBRACKET, FRONT SIDE PANEL, LH
55138ABRACE, DASH TO FRAME, LH
55210ACLIP
55223AINSULATOR, DASH PANEL, OUTER
55250CINSULATOR ASSY, DASH PANEL, LOWER RH
55260AINSULATOR ASSY, DASH PANEL, LOWER LH
5701
9010506137
main90105-06137
9010906328
main90109-06328
9046706197
main90467-06197
9046707214
main90467-07214
9046707217
main90467-07217
9046713079
main90467-13079
9054115022
main90541-15022
9054115031
main90541-15031
9151580818
main91515-80818
91635G0616
main91635-G0616
9415180840
main94151-80840
57 parts on this diagram · 2 diagrams in section
