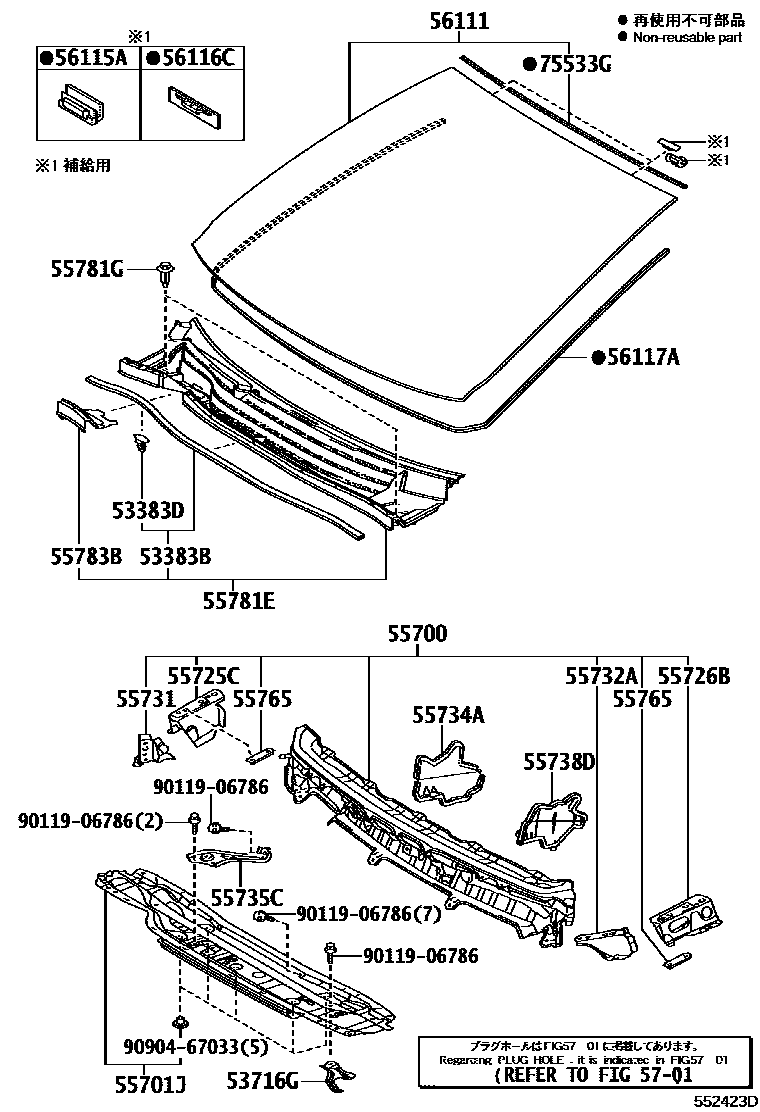

Toyota SAI — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53716GEXTENSION, FRONT FENDER APRON, REAR LH
55700PANEL ASSY, FRONT
55725CREINFORCEMENT, HOOD HINGE MOUNTING, RH
55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH
55731BRACKET, COWL BODY MOUNTING, UPPER RH
55732ABRACKET, COWL BODY MOUNTING, UPPER LH
55734APLATE, WATER GUARD, RH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55765BRACKET, HOOD DAMPER MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
5701
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
main90119-06786
9090467033
main90904-67033
24 parts on this diagram · 1 diagram in section
