Toyota SAI — ARMREST & VISOR

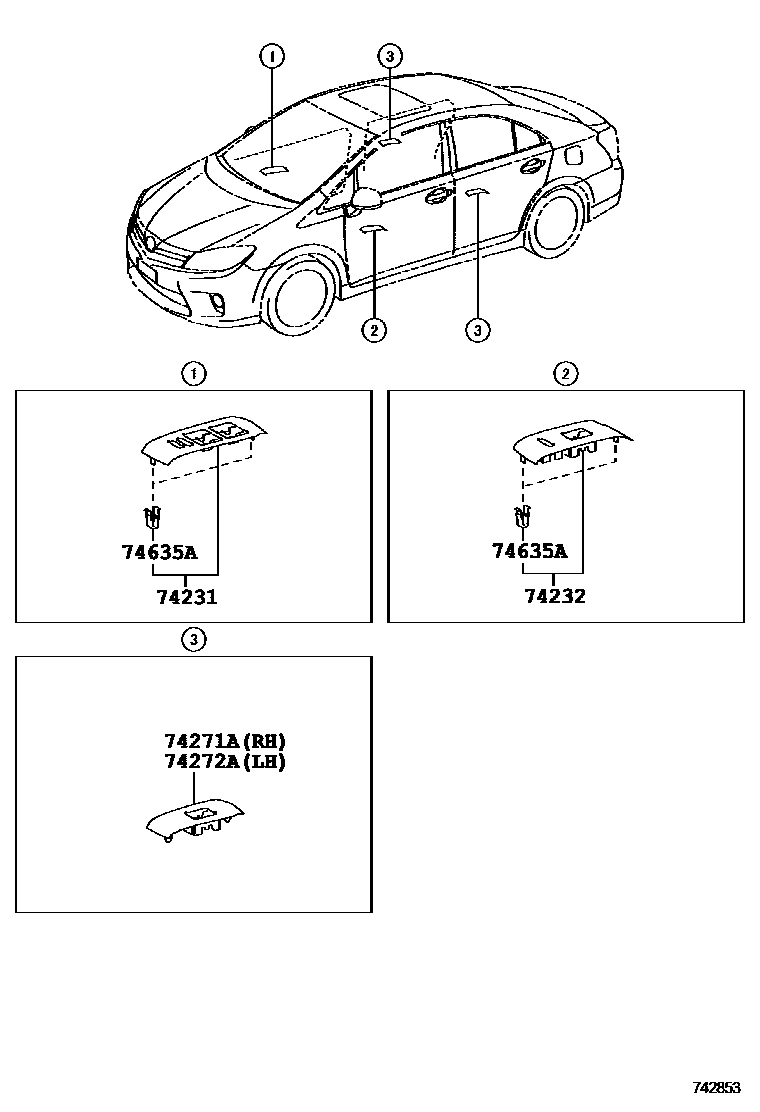

Parts diagram

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-75070i200911-201802

main74231-75120i200911-201111

main74231-75140i201111-201308

main74231-75160-C0i201505-201802

BLACK,TRIM20

main74231-75160-C0i201308-201505

BLACK,TRIM2#

main74231-75160-C1i201505-201802

COOL BLACK,TRIM22

main74231-75160-D0i201308-201802

RED,TRIM01

main74231-75160-E0i201308-201802

REDDISH BROWN,TRIM00

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-75070i200911-201802

main74232-75120i200911-201111

main74232-75140i201111-201308

main74232-75160-C0i201505-201802

BLACK,TRIM20

main74232-75160-C0i201308-201505

BLACK,TRIM2#

main74232-75160-C1i201505-201802

COOL BLACK,TRIM22

main74232-75160-D0i201308-201802

RED,TRIM01

main74232-75160-E0i201308-201802

REDDISH BROWN,TRIM00

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-75040i200911-201802

main74271-75080i200911-201111

main74271-75100i201111-201308

main74271-75110-C0i201308-201505

BLACK,TRIM2#

main74271-75110-C0i201505-201802

BLACK,TRIM20

main74271-75110-C1i201505-201802

COOL BLACK,TRIM22

main74271-75110-D0i201308-201802

RED,TRIM01

main74271-75110-E0i201308-201802

REDDISH BROWN,TRIM00

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-75040i200911-201802

main74272-75070i200911-201111

main74272-75090i201111-201308

main74272-75110-C0i201505-201802

BLACK,TRIM20

main74272-75110-C0i201308-201505

BLACK,TRIM2#

main74272-75110-C1i201505-201802

COOL BLACK,TRIM22

main74272-75110-D0i201308-201802

RED,TRIM01

main74272-75110-E0i201308-201802

REDDISH BROWN,TRIM00

74635ACLIP

main90467-10203i200911-201308

5 parts on this diagram · 2 diagrams in section
