Toyota RUSH — INSTRUMENT PANEL & GLOVE COMPARTMENT

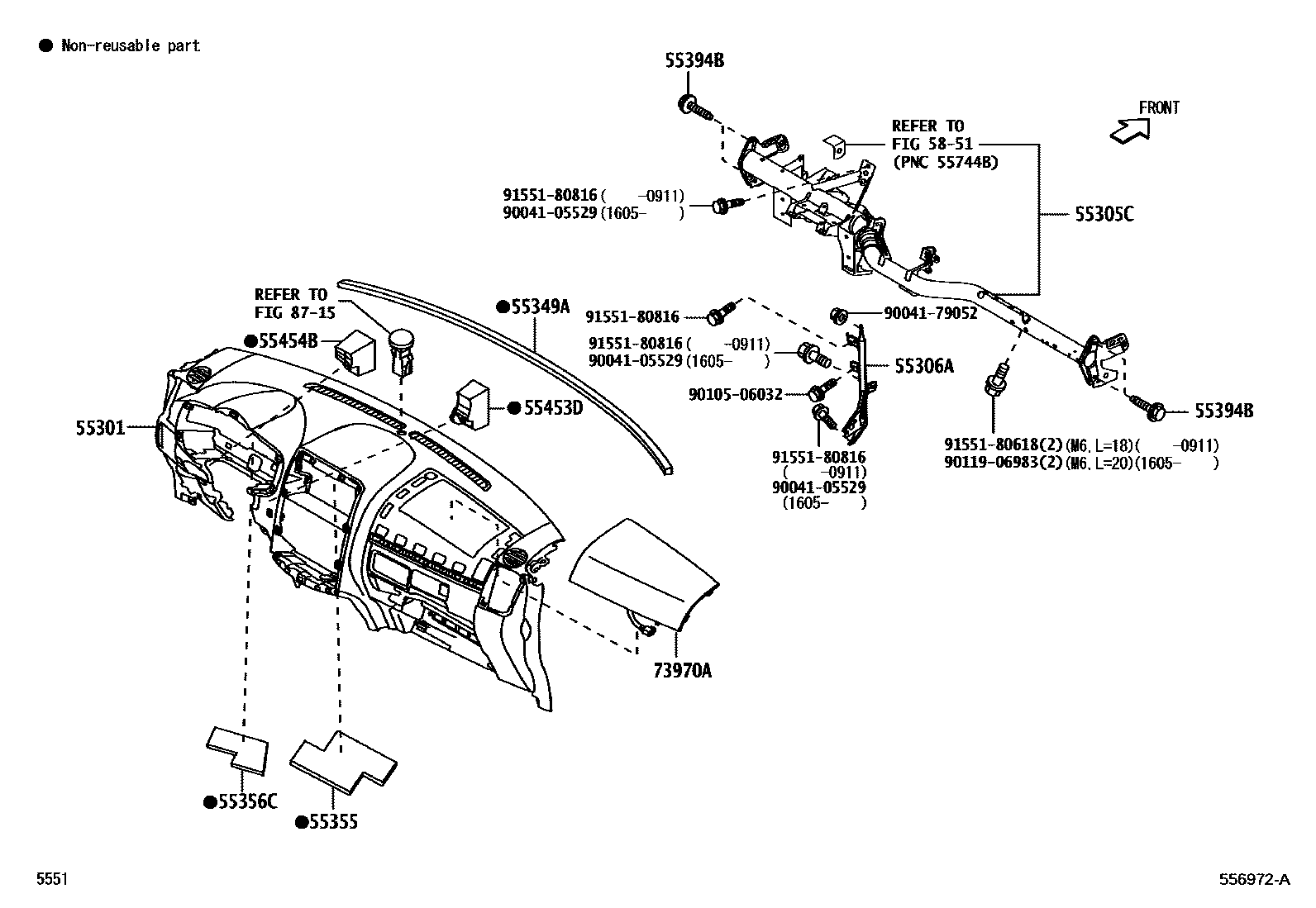

Parts diagram

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B4022-B0i201605

DK.GRAY,TRIM1#

main55311-B4120-B0i200811-200911

DK.GRAY,TRIM1#

55305CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-B4020i200811

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-B4020i200811

55349ACUSHION, INSTRUMENT PANEL

main55349-B4010i200811

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-B4011i200811

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-B4011i200811

55394BBOLT, INSTRUMENT PANEL

main55394-B2010×4i200811

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-B4020i200811

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-B4020i200811

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B4020-B0i200811

DK.GRAY,TRIM1#

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9004105529

main90041-05529

9004179052

main90041-79052

9010506032

main90105-06032

9011906983

main90119-06983

9155180618

main91551-80618

9155180816

main91551-80816

18 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota RUSH

This section contains 61 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota RUSH. Key components include: PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1.
