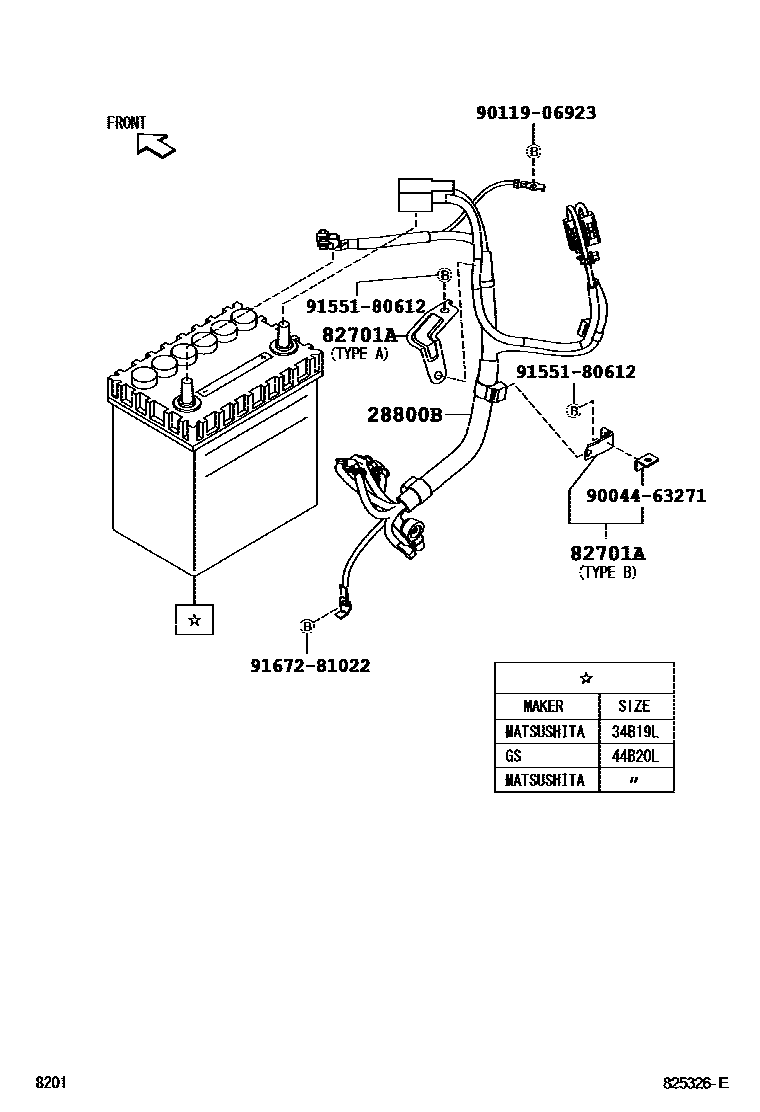

Toyota RUSH — BATTERY & BATTERY CABLE

28800BCABLE, BATTERY TO GROUND

main82122-B4010i200811-200911

main82122-B4080i201605

82701ABRACKET SUB-ASSY, WIRE HARNESS

main82715-B4020i200811-200911

TYPE A

main82715-B4050i201605

TYPE B

9004463271

main90044-63271

9011906923

main90119-06923

9155180612

main91551-80612

9167281022

main91672-81022

6 parts on this diagram · 2 diagrams in section

BATTERY & BATTERY CABLE for Toyota RUSH

This section contains 11 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota RUSH. Key components include: CABLE, BATTERY TO GROUND, TERMINAL, BATTERY NEGATIVE, BRACKET SUB-ASSY, WIRE HARNESS, SWITCH & RELAY & COMPUTER.
