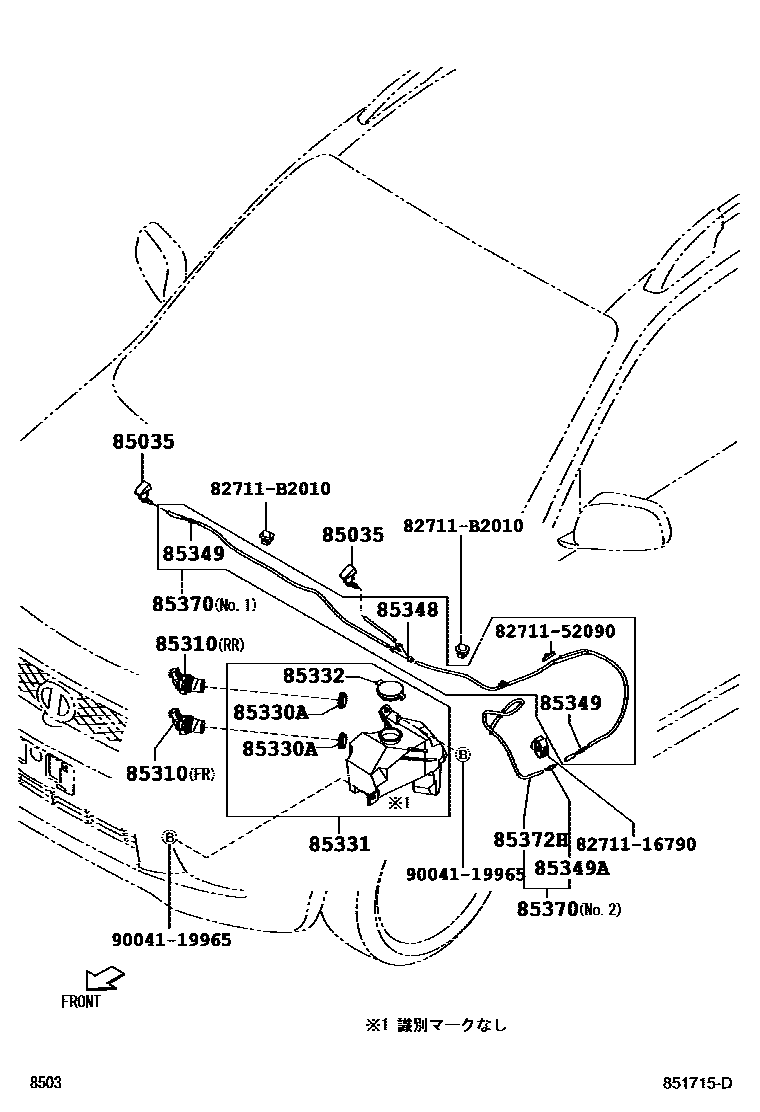

Toyota RUSH — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-B4010×2iJ210200811-201605

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-97502iJ210200811-201605

main85310-97503iJ210200811-201605

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202×2iJ200,210200601-200811

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-B4010iJ200,210200601-200811

main85315-B4030iJ200201308-201409

85332CAP, WINDSHIELD WASHER JAR

main85332-87401iJ200200811-201409

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-87201iJ200,210200601-200811

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-87201×2iJ200,210200601-200811

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-87201iJ200,210200601-200811

85370HOSE ASSY, WINDSHIELD WASHER

main85370-B4010iJ200,210200601-200811

main85370-B4030iJ200200811-201409

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85343-97401iJ210200811-201605

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

82711B2010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-B2010

9004119965

main90041-19965

14 parts on this diagram · 2 diagrams in section
