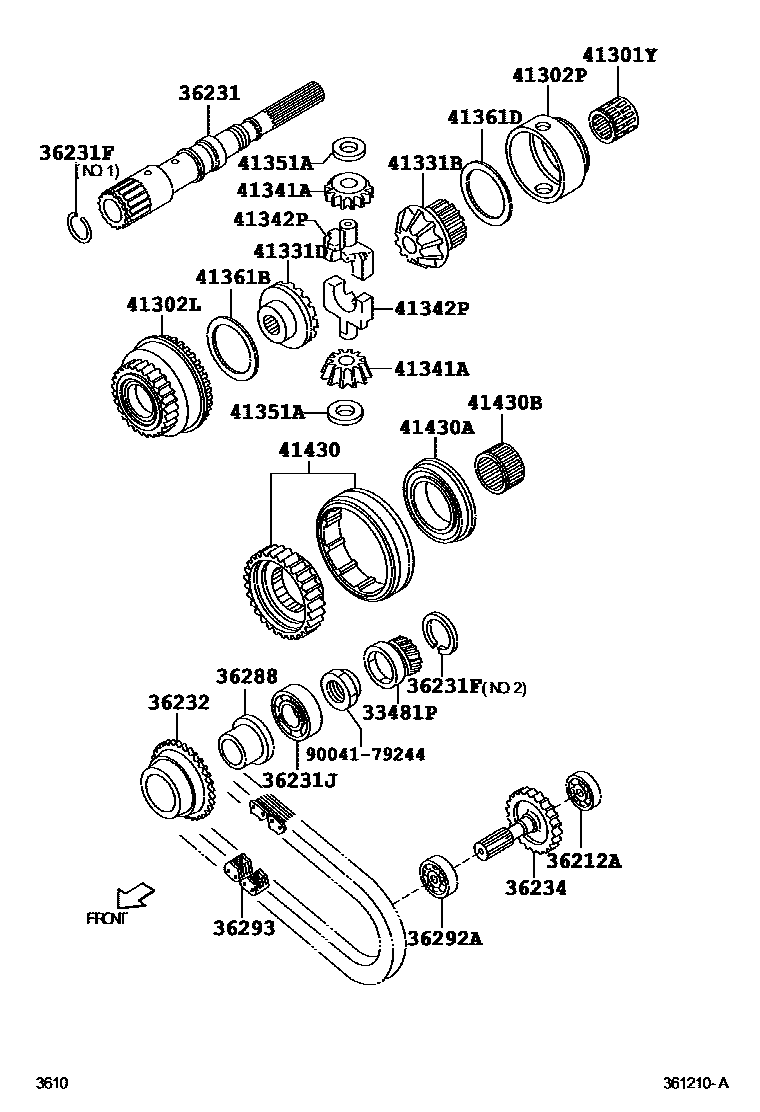

Toyota RUSH — TRANSFER GEAR
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36231SHAFT, TRANSFER OUTPUT, REAR
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36232GEAR, TRANSFER FRONT DRIVE
36234SHAFT, TRANSFER OUTPUT, FRONT
36288RACE, TRANSFER THRUST BEARING, NO.1
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36293CHAIN, TRANSFER FRONT DRIVE
41301YBEARING, NEEDLE ROLLER(FOR DIFFERENTIAL CASE)
41302LCASE SUB-ASSY, DIFFERENTIAL, NO.2
41302PCASE SUB-ASSY, DIFFERENTIAL, NO.1
41331BGEAR, CENTER DIFFERENTIAL SIDE
41331DGEAR, DIFFERENTIAL SIDE, NO.2
41341APINION, CENTER DIFFERENTIAL
41342PSHAFT, DIFFERENTIAL PINION
41351AWASHER, CENTER DIFFERENTIAL PINION TRUST
41361BWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361DWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2
41430HUB, TRANSFER CLUTCH
41430ABEARING, TRANSFER CLUTCH HUB
41430BNEEDLE ROLLER BEARING, TRANSFER CLUTCH HUB
9004179244
main90041-79244
24 parts on this diagram · 1 diagram in section
TRANSFER GEAR for Toyota RUSH
This section contains 24 genuine Toyota parts for the TRANSFER GEAR system of the Toyota RUSH. Key components include: GEAR, SPEEDOMETER DRIVE (FOR TRANSFER), BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR), SHAFT, TRANSFER OUTPUT, REAR, RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT), BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR).
