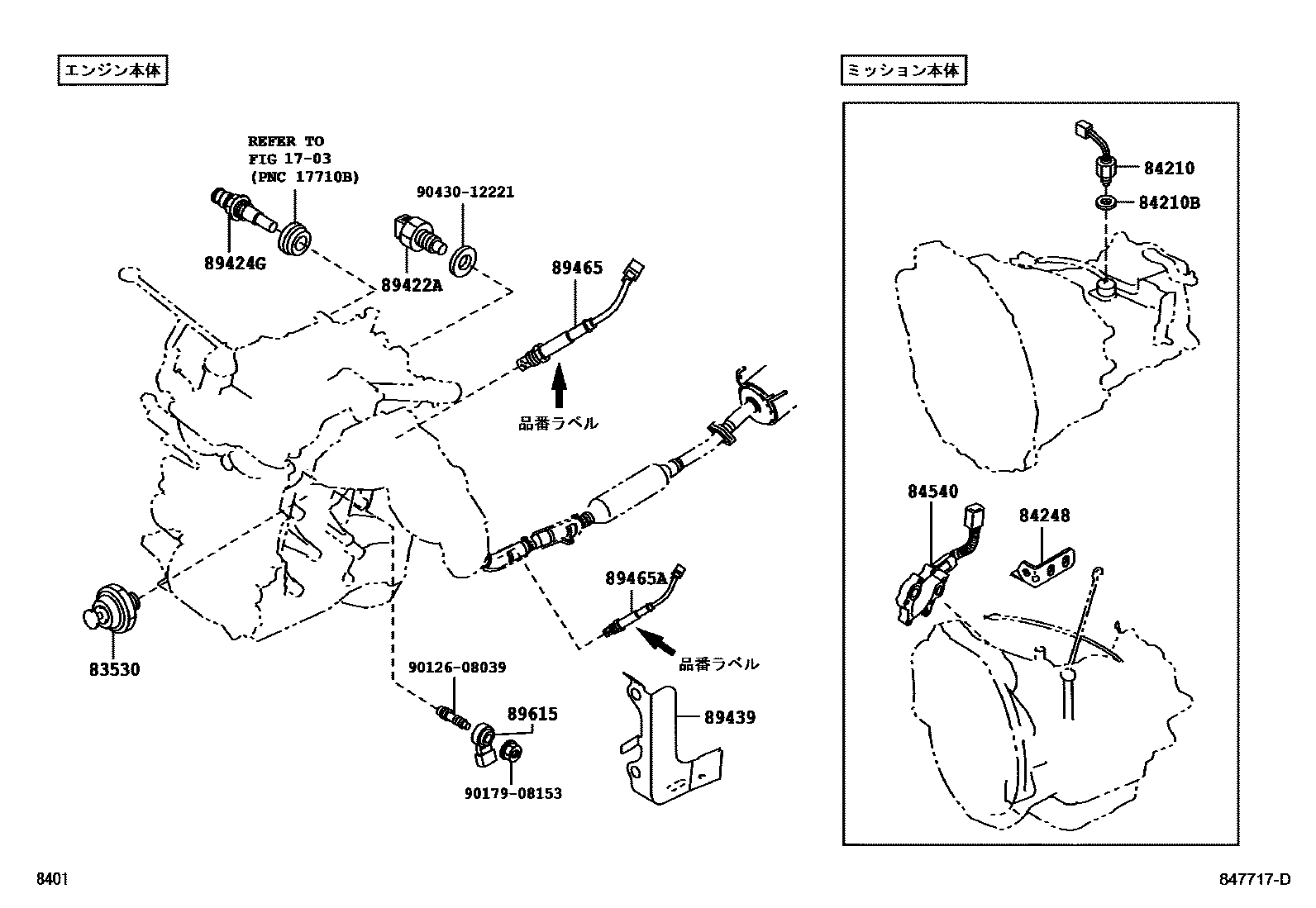

Toyota RUSH — SWITCH & RELAY & COMPUTER

0001 1�����&��������� 0002 1�������� 0003 1��� 0004 1������������ 0005 1������� 0006 1���&���

1703

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-97401iJ200200811-201409

84210SWITCH ASSY, BACK-UP LAMP

main84210-B4010iJ210..5F200910-201302

main84210-B5010iJ210..5F200601-200811

84210BGASKET, BACK-UP LAMP SWITCH

main90044-30186iJ210..5F200811-201302

84248CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS

main84248-B4010iJ210..5F200811-201302

84540SWITCH ASSY, NEUTRAL START

main84540-97502iJ200,210..E4AT200601-200811

main84540-B0010iJ200201105-201409

89422ASENSOR, WATER TEMPERATURE

main89422-33030iJ210200811-201605

89424GSENSOR, INLET AIR TEMPERATURE

main89424-87703iJ200200811-201409

89439BRACKET, SENSOR

main89439-B4010iJ200,210..E4AT200601-200811

main89439-B4020iJ210..5F200601-200811

89465SENSOR, OXYGEN

main89465-B4030iJ200,210200601-200811

main89465-B4080iJ210201007-201605

89465ASENSOR, OXYGEN NO.2

main89465-B4010iJ200,210200601-200811

main89465-B4050iJ200201007-201409

89615SENSOR, KNOCK CONTROL

main89615-20090iJ200,210200601-200811

9012608039

main90126-08039

9017908153

main90179-08153

9043012221

main90430-12221

15 parts on this diagram · 6 diagrams in section
