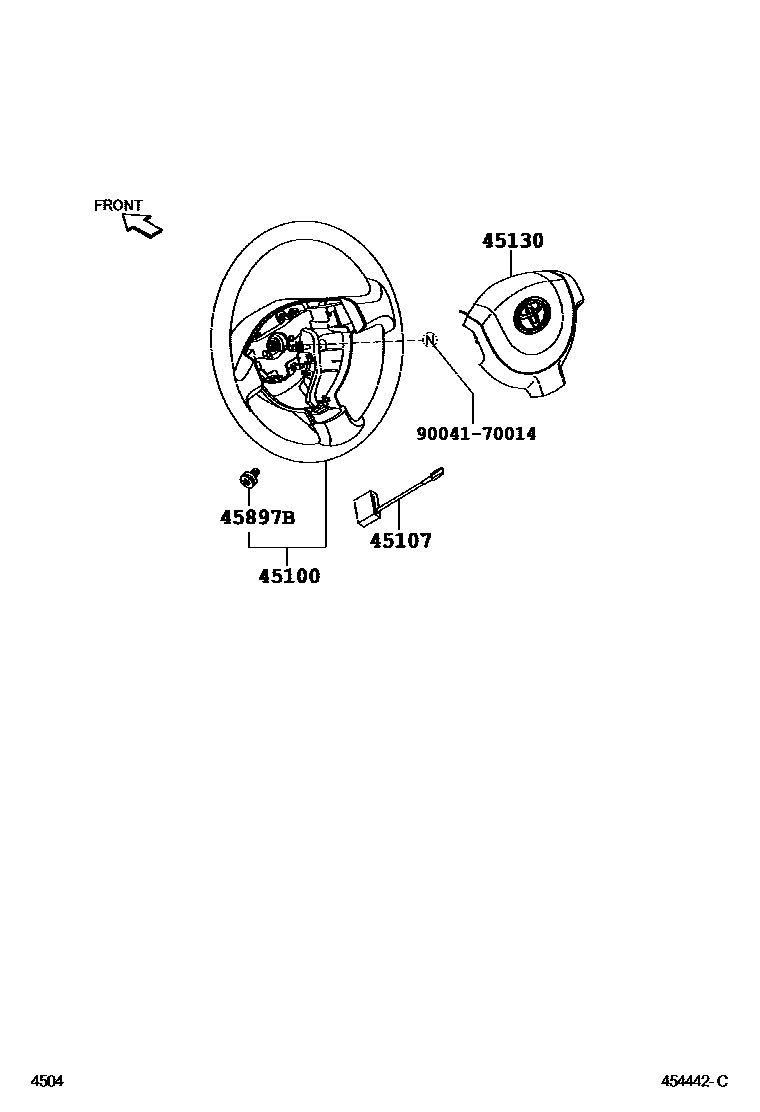

Toyota RUSH — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45102-B4030-B0i200811-201409

DK.GRAY,TRIM1#

main45102-B4020-B0supersedes 45102-B4010-B0i200601-200811

main45102-B4050-B0supersedes 45102-B4060-B0i200811-201004

main45102-B4060-B0i201004-201302

45107WIRE SUB-ASSY, HORN BUTTON

main45107-B2010i200601-200811

main45107-B2030i200811-201302

main45107-B2040supersedes 45107-B2030i201302-201605

45130BUTTON ASSY, HORN

main45130-B0020-B0i201005-201409

DK.GRAY,TRIM1#

main45130-B4010-B0i200601-200811

DK.GRAY,TRIM1#

main45130-B4100-B0i200811-201005

DK.GRAY,TRIM1#

45897BBOLT, STEERING LOCK SET

main45897-97202×2i200601-200811

main45897-B2020×2i201005-201409

9004170014

main90041-70014

5 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota RUSH

This section contains 5 genuine Toyota parts for the STEERING WHEEL system of the Toyota RUSH. Key components include: WHEEL ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, BUTTON ASSY, HORN, BOLT, STEERING LOCK SET.
