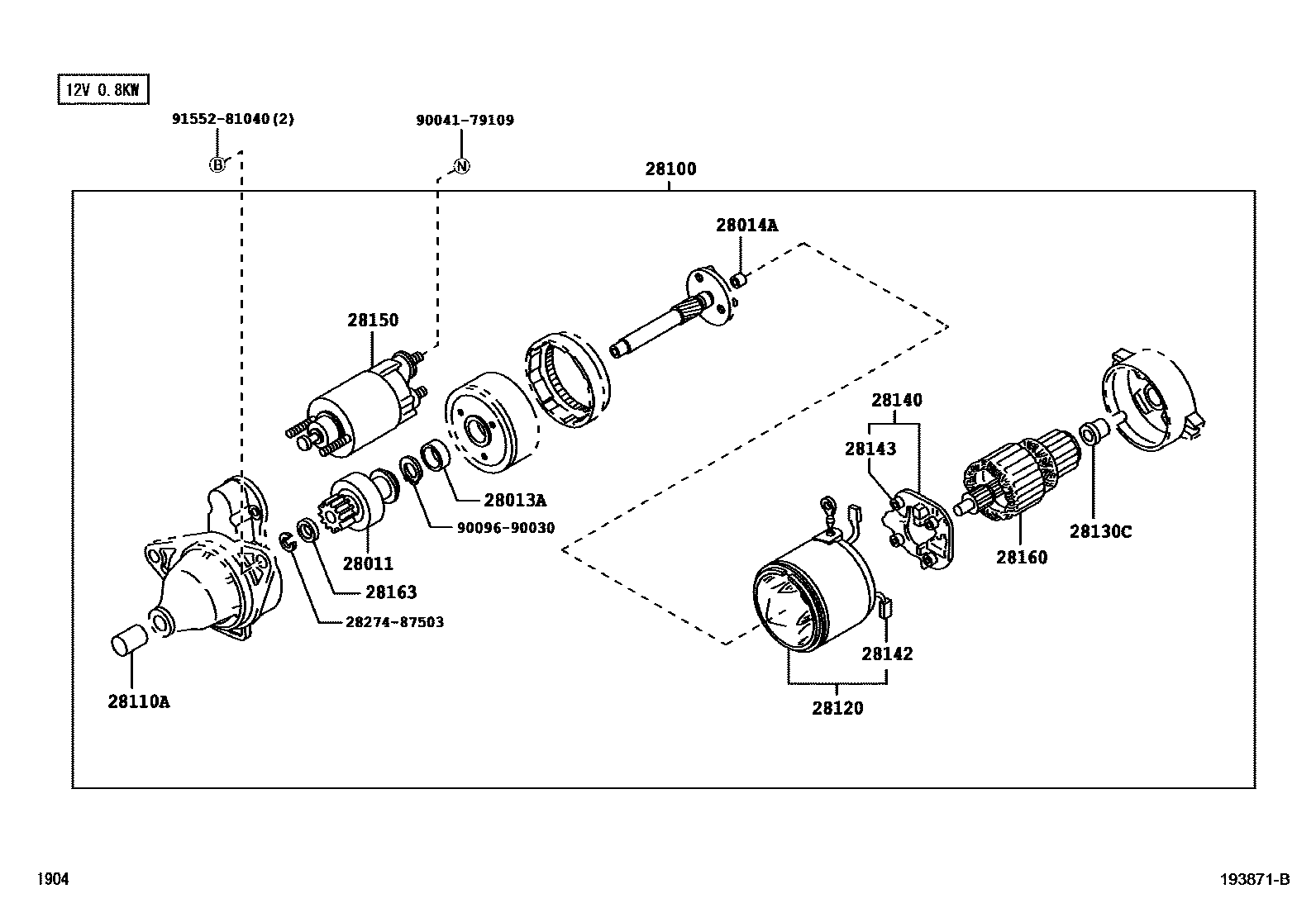

Toyota RUSH — STARTER
28011CLUTCH SUB-ASSY, STARTER
28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
28014SHAFT SUB-ASSY, PLANET CARRIER
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28110ABEARING(FOR STARTER HOUSING)
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
28142BRUSH, STARTER
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28163NUT OR COLLAR, PINION STOP, STARTER
2827487503SNAP RING, STARTER, NO.1
main28274-87503
9004179109
main90041-79109
9009690030
main90096-90030
9155281040
main91552-81040
21 parts on this diagram · 3 diagrams in section
