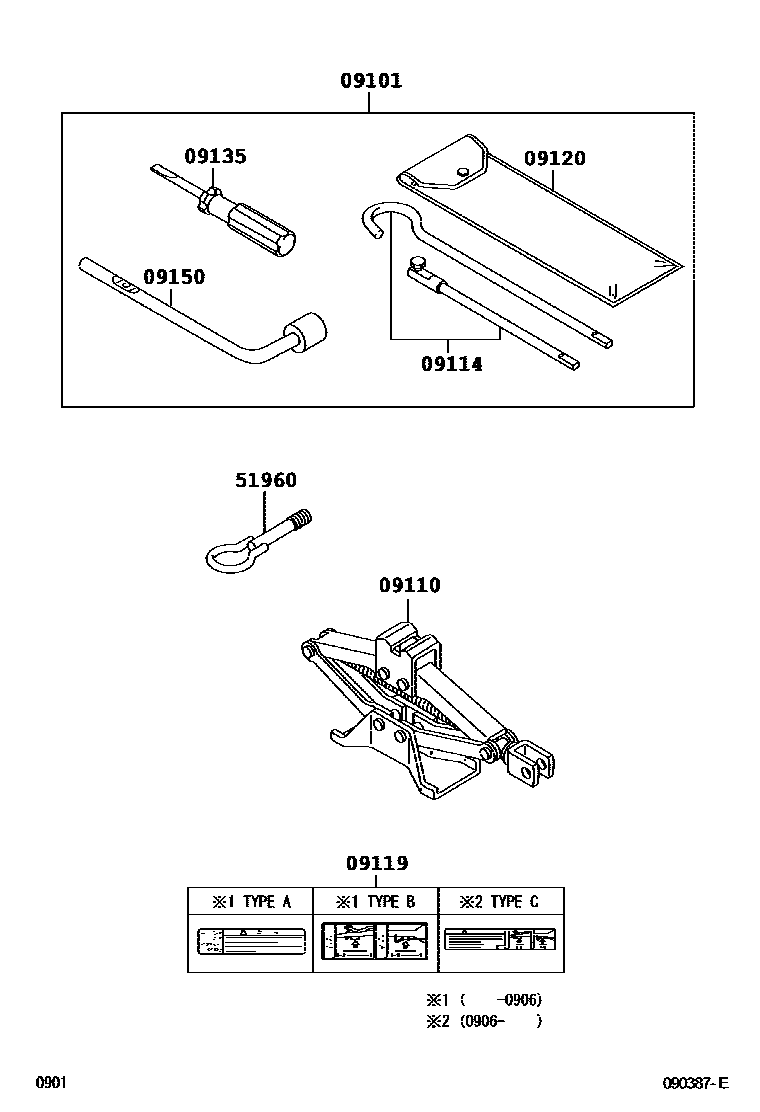

Toyota RUSH — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-B4010iJ200,210200601-200811

main09101-B4011iJ200201102-201409

09110JACK ASSY

main09111-B4010iJ200,210200601-200612

main09111-B4011iJ200,210200701-200811

main09111-B4012iJ210200906-201605

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-B4010iJ200,210200601-200811

09119LABEL, JACK CAUTION

main09119-B4010iJ200,210200601-200811

main09119-B4011iJ210200906-201605

main09119-B4040iJ200,210200811-200906

sub09119-B4020

09120BAG, TOOL

main09120-B4010iJ200,210200601-200811

main09120-B4011iJ200201102-201409

09135DRIVER, SCREW

main09135-B4010iJ200,210200601-200811

09150WRENCH, HUB NUT BOX

main09151-B4010iJ200,210200601-200811

51960HOOK ASSY, FRONT

main51960-B4010×2iJ200,210200601-200811

8 parts on this diagram · 1 diagram in section
