Toyota RUSH — SPOILER & SIDE MUDGUARD

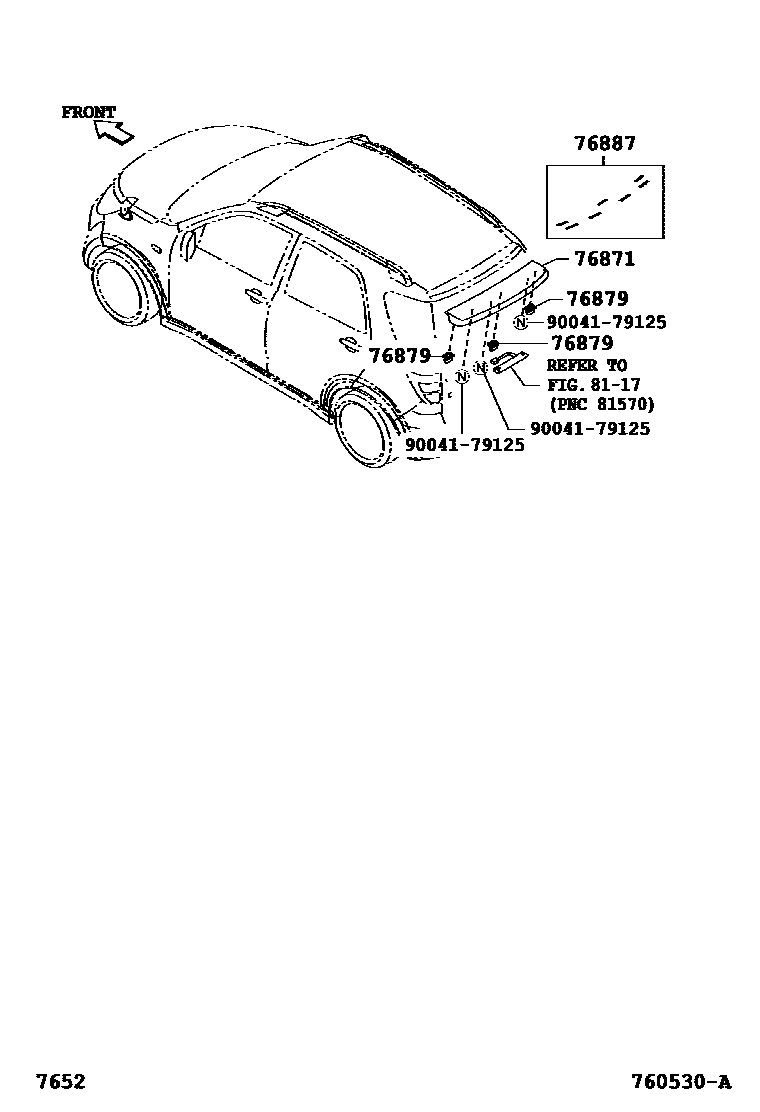

Parts diagram

76871SPOILER, REAR

main76871-B4010-A0i200601-200811

main76871-B4010-A1i200601-200811

main76871-B4010-A2i200712-200811

main76871-B4010-B0i200601-200811

main76871-B4010-B1i200601-200811

main76871-B4010-C0i200601-200811

main76871-B4010-D0i200811-201007

main76871-B4010-E0i200811-201007

main76871-B4010-F0i200601-200710

main76871-B4010-G0i200601-200811

main76871-B4010-G1i200811-201007

main76871-B4010-J0i200811-201007

main76871-B4010-D1i201007-201204

main76871-B4010-D2i201204-201409

main76871-B4010-G2i201204-201602

76879CLIP, REAR SPOILER, NO.1

main90467-09196×3i200601-200811

76887SEAL, REAR SPOILER

main76887-B4020i200601-200811

8117CENTER STOP LAMP

→ Go to FIG 81-17

9004179125

main90041-79125

5 parts on this diagram · 2 diagrams in section

SPOILER & SIDE MUDGUARD for Toyota RUSH

This section contains 8 genuine Toyota parts for the SPOILER & SIDE MUDGUARD system of the Toyota RUSH. Key components include: SPOILER, REAR, CLIP, REAR SPOILER, NO.1, SEAL, REAR SPOILER, SPOILER,REAR SIDE RH, SPOILER,REAR SIDE LH.
