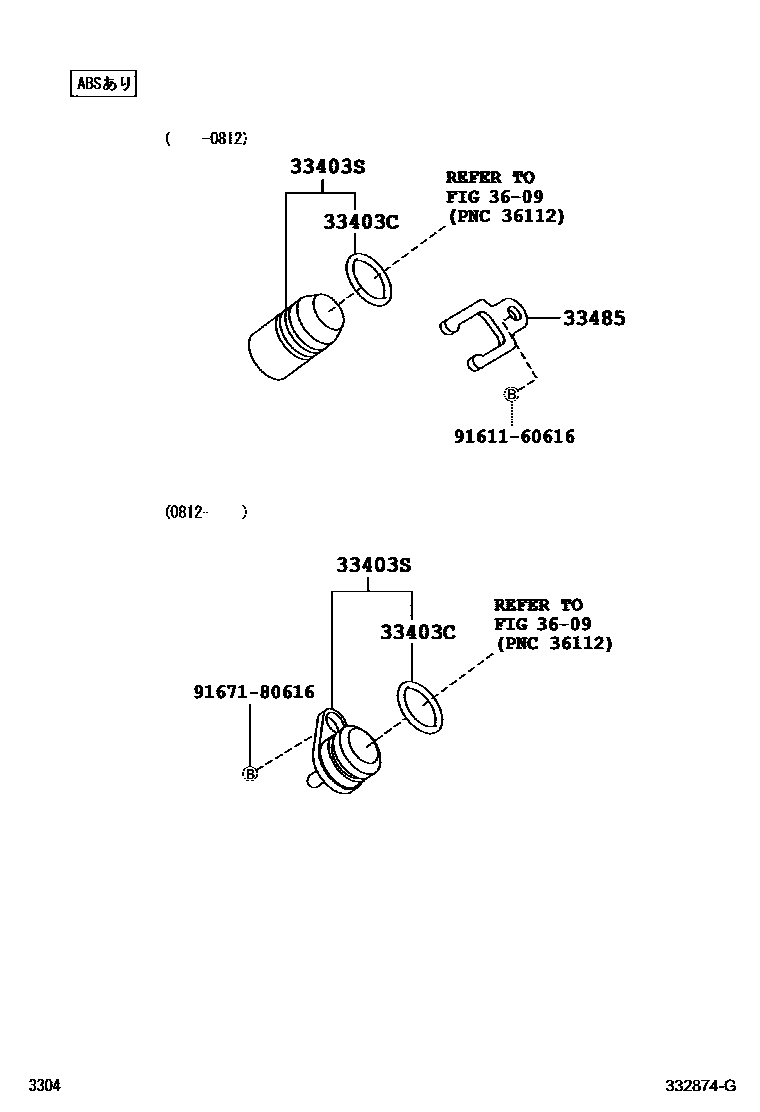

Toyota RUSH — SPEEDOMETER DRIVEN GEAR (MTM)

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main96723-24020i200601-200811

33403SPLUG(FOR MTM SPEEDOMETER DRIVEN HOLE)

main90043-39133i200601-200811

main90043-39134i200812-201302

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-97201i200601-200811

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

9161160616

main91611-60616

9167180616

main91671-80616

6 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota RUSH

This section contains 6 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota RUSH. Key components include: RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT), PLUG(FOR MTM SPEEDOMETER DRIVEN HOLE), PLATE, SPEEDOMETER SLEEVE LOCK (MTM), TRANSFER CASE & EXTENSION HOUSING.
