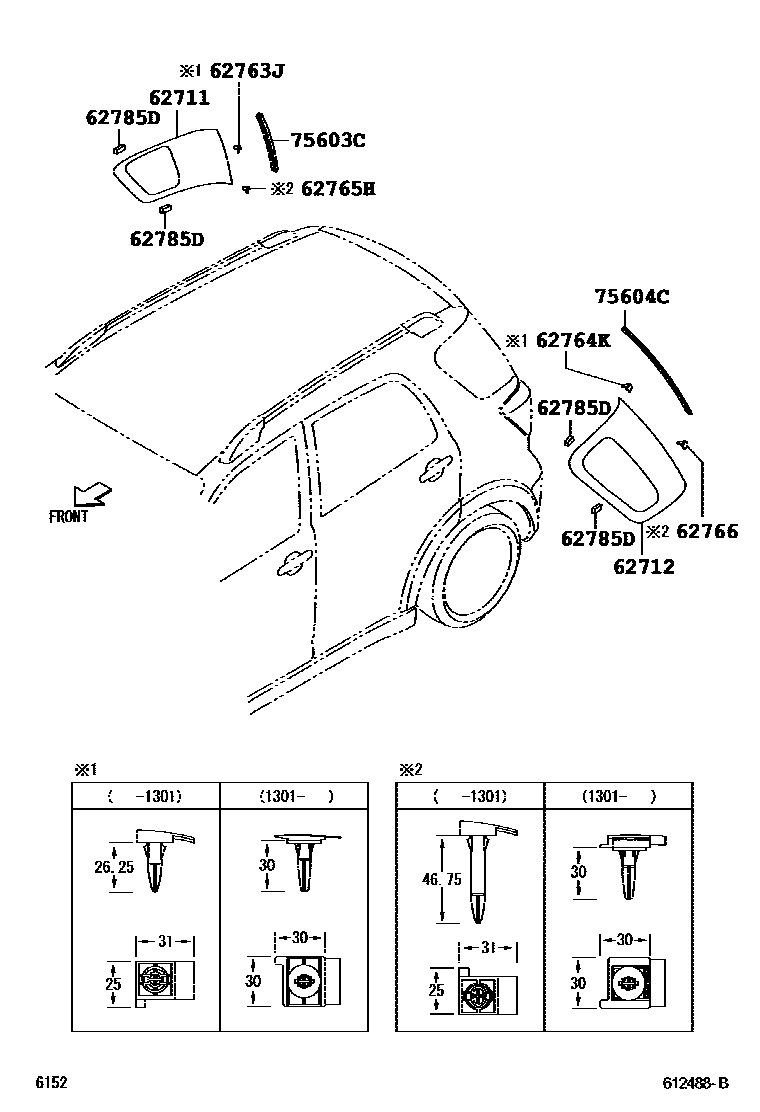

Toyota RUSH — SIDE WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-B4021i200811-201409

main62711-B4030supersedes 62711-B4020i200601-200811

62712GLASS, QUARTER WINDOW, LH

main62712-B4021i200811-201409

main62712-B4030supersedes 62712-B4020i200601-200811

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-B4010i200601-200811

main62763-B4020i201301-201409

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-B4010i200601-200811

main62764-B4020i201301-201605

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-B4010i200601-200811

main62765-B4020i201301-201409

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-B4010i200601-200811

main62766-B4020i201301-201409

62785DSPACER, QUARTER WINDOW GLASS

main62785-B2030×4i200601-200811

75603CMOULDING,QUARTER WINDOW,OUTSIDE FRONT RH

main75641-B4010i200601-200811

75604CMOULDING,QUARTER WINDOW,OUTSIDE FRONT LH

main75642-B4010i200601-200811

9 parts on this diagram · 1 diagram in section

SIDE WINDOW for Toyota RUSH

This section contains 9 genuine Toyota parts for the SIDE WINDOW system of the Toyota RUSH. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, RETAINER, QUARTER WINDOW GLASS, UPPER, RETAINER, QUARTER WINDOW GLASS, LOWER.
