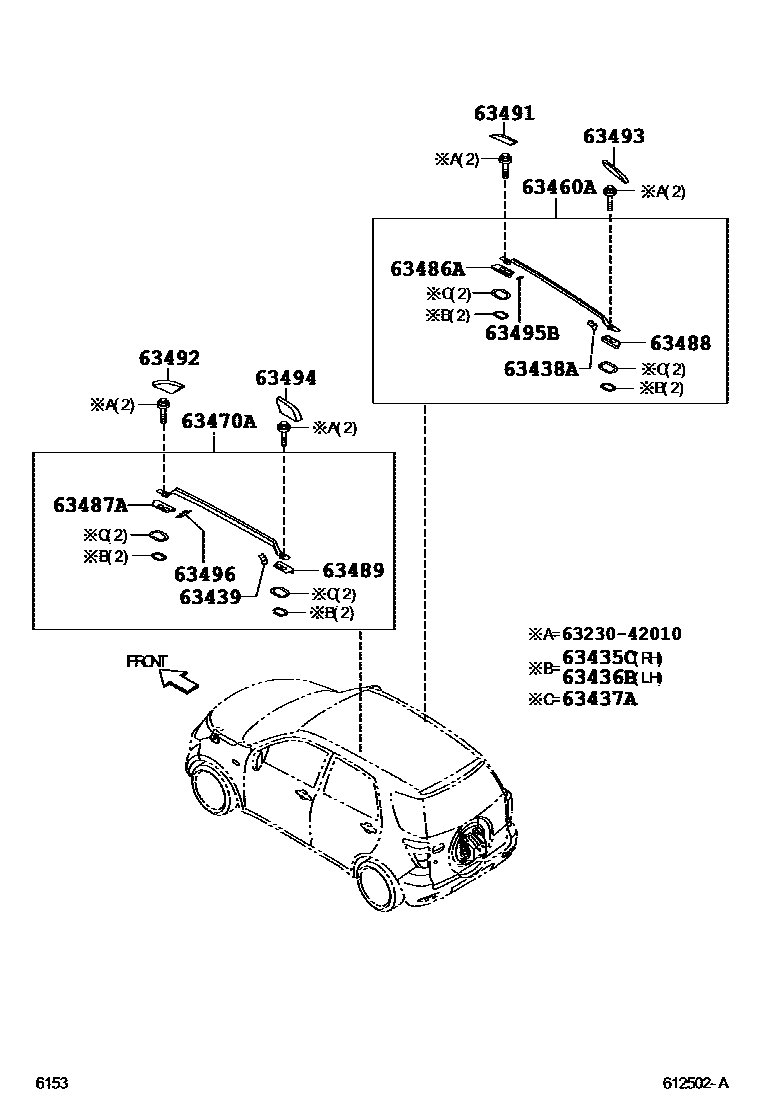

Toyota RUSH — ROOF PANEL & BACK PANEL

0001 1������ 0002 1

63435CSEAL, ROOF CARRIER, NO.1 RH

main63435-B4010×4iJ200,210..X200601-200811

63436BSEAL, ROOF CARRIER, NO.1 LH

main63435-B4010×4iJ200,210..X200601-200811

63437ASEAL, ROOF CARRIER, NO.2

main63437-B4010×8iJ200,210..X200601-200811

63438ACOVER, ROOF RACK END, NO.1

main63438-B4010iJ200,210..X200601-200811

63439COVER, ROOF RACK END, NO.2

main63439-B4010iJ200,210..X200601-200811

63460ARACK ASSY, ROOF, RH

main63460-B4010iJ200,210..X200601-200811

63470ARACK ASSY, ROOF, LH

main63470-B4010iJ200,210..X200601-200811

63486ACUSHION, ROOF RACK LEG, FRONT RH

main63486-B4010iJ200,210..X200601-200811

63487ACUSHION, ROOF RACK LEG, FRONT LH

main63487-B4010iJ200,210..X200601-200811

63488CUSHION, ROOF RACK LEG, REAR RH

main63488-B4010iJ200,210..X200601-200811

63489CUSHION, ROOF RACK LEG, REAR LH

main63489-B4010iJ200,210..X200601-200811

63491COVER, ROOF RACK LEG, FRONT RH

main63491-B4010iJ200,210..X200601-200811

63492COVER, ROOF RACK LEG, FRONT LH

main63492-B4010iJ200,210..X200601-200811

63493COVER, ROOF RACK LEG, REAR RH

main63493-B4010iJ200,210..X200601-200811

63494COVER, ROOF RACK LEG, REAR LH

main63494-B4010iJ200,210..X200601-200811

63495BCOVER, ROOF RACK LEG, CENTER RH

main63495-B4010iJ200,210..X200601-200811

63496COVER, ROOF RACK LEG, CENTER LH

main63496-B4010iJ200,210..X200601-200811

6323042010MOULDING ASSY, ROOF WINDOW, SIDE

main63230-42010

18 parts on this diagram · 2 diagrams in section
