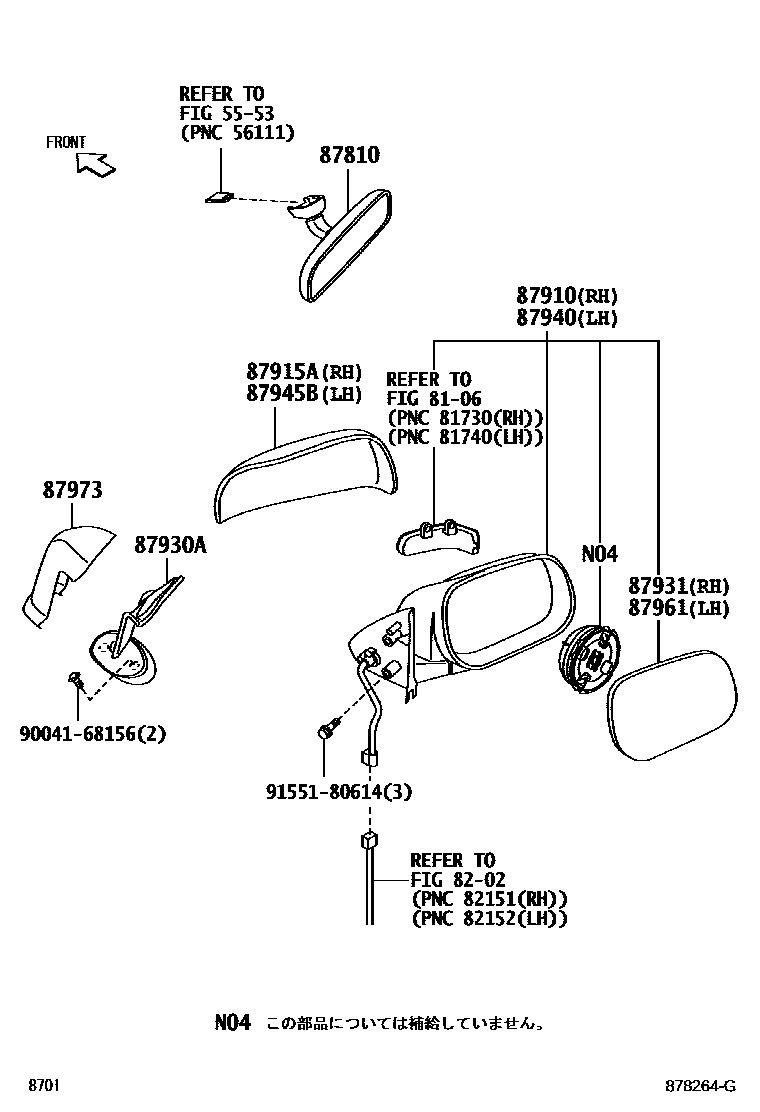

Toyota RUSH — MIRROR
5553COWL PANEL & WINDSHIELD GLASS
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8202WIRING & CLAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915ACOVER, OUTER MIRROR, RH
WHITE,W23
WHITE PEARL MC.CS,W24
SILVER ME.,S28
GRAY ME.,S33
BLACK M.M.,X07
RED,R40
DK.RED.MC,R54
BROWN MC.CS,R59
CHAMPAGNE ME.,T23
YELLOW,Y09
LIME GREEN M.M.,G41
BRITISH GREEN MC.,G37
OLIVE ME.SE,G52
BLUE M.M.,B58
87930AMIRROR ASSY, OUTER UNDER VIEW
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945BCOVER, OUTER MIRROR, LH
WHITE,W23
WHITE PEARL MC.CS,W24
SILVER ME.,S28
GRAY ME.,S33
BLACK M.M.,X07
RED,R40
DK.RED.MC,R54
BROWN MC.CS,R59
CHAMPAGNE ME.,T23
YELLOW,Y09
LIME GREEN M.M.,G41
BRITISH GREEN MC.,G37
OLIVE ME.SE,G52
BLUE M.M.,B58
87961MIRROR OUTER, LH
87973COVER, OUTER UNDER RR VIEW MIRROR
WHITE,W23
WHITE PEARL MC.CS,W24
SILVER ME.,S28
GRAY ME.,S33
BLACK M.M.,X07
RED,R40
BROWN MC.CS,R59
DK.RED.MC,R54
CHAMPAGNE ME.,T23
YELLOW,Y09
LIME GREEN M.M.,G41
BRITISH GREEN MC.,G37
OLIVE ME.SE,G52
BLUE M.M.,B58
9004168156
main90041-68156
9155180614
main91551-80614
14 parts on this diagram · 1 diagram in section
