Toyota RUSH — INSIDE TRIM BOARD

62111BCLIP(FOR COWL SIDE TRIM)

main90044-67397×2i200601-200811

62111CBOARD, COWL SIDE TRIM, RH

main62111-B4010-B0i200811-201409

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-B4010-B0i200811-201409

DK.GRAY,TRIM1#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-B4010i200601-200811

62173GARNISH, SIDE WINDOW, FRONT RH

main63691-B4010i200601-200811

62174GARNISH, SIDE WINDOW, FRONT LH

main63692-B4010i200811-201409

62175GARNISH, SIDE WINDOW, REAR RH

main63693-B4010i200811-201409

62176GARNISH, SIDE WINDOW, REAR LH

main63694-B4010i200601-200811

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-B4010i200811-201409

62211GARNISH, FRONT PILLAR, RH

main62211-B4020-B0supersedes 62211-B4010-B0i200601-200811

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90044-68346×4i200601-200811

62212GARNISH, FRONT PILLAR, LH

main62212-B4020-B0supersedes 62212-B4010-B0i200601-200811

62217GCLIP, FRONT PILLAR GARNISH

main62217-52030i200811-201409

main62217-52050i200811-201409

62217HCLIP, CENTER PILLER GARNISH

main62217-B2010×2i200601-200811

62313DTRIM, FRONT DOOR OPENING, RH

main62313-B4010i200601-200602

main62313-B4020i200811-201605

62314DTRIM, FRONT DOOR OPENING, LH

main62314-B4010i200601-200602

main62314-B4020i200602-200811

62333ATRIM, REAR DOOR OPENING, RH

main62333-B2150-C0i201402-201605

BLACK

main62333-B4010i200601-200811

main62333-B4011i201204-201402

62334ATRIM, REAR DOOR OPENING, LH

main62333-B2150-C0i201402-201605

BLACK

main62333-B4010i200601-200811

main62333-B4011i201204-201402

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-B4010-B0i200601-200811

LT.GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-B4010-B0i200811-201605

LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-B4010-B0i200601-200811

DK.GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-B4010-B0i200811-201605

DK.GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-B4030i201206-201302

main62471-B4030-B0i201206-201605

LT.GRAY,TRIM1#

main62471-B4020-B0supersedes 62471-B4010-B0i200601-200811

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main62217-B2020×4i200811-201409

62471JCLIP (FOR ROOF SIDE GARNISH)

main62217-B2020×2i201206-201605

main67771-B2010×2i201206-201605

main90467-10167×4i200607-200811

62472AGARNISH, ROOF SIDE, INNER LH

main62472-B4030i201206-201302

main62472-B4030-B0i201206-201605

LT.GRAY,TRIM1#

main62472-B4020-B0supersedes 62472-B4010-B0i200601-200811

62611ERETAINER, DOOR TRIM

main67771-B2010×8i200811-201605

64342ACLIP

main90044-68046-B2×4i200602-200811

DK.GRAY

main90044-68046-N1×4i200601-200811

BLACK

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-B4010-B0i200811-201409

DK.GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-B4010-B0i200811-201409

DK.GRAY,TRIM1#

64910MCOVER ASSY, TONNEAU

main67063-B4010-B0i200601-200811

67771HRETAINER, DOOR TRIM

main67771-B2010×14i200811-201605

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-B4010-B0i200601-200811

DK.GRAY,TRIM1#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-B4010-B0i200601-200811

DK.GRAY,TRIM1#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-B4010-B0i200601-200811

DK.GRAY,TRIM1#

67918DPLATE, REAR DOOR SCUFF, LH

main67918-B4010-B0i200601-200811

DK.GRAY,TRIM1#

73381BHOLDER, REAR SEAT BELT

main73381-87202-B2×2i200601-200811

DK.GRAY,TRIM1#

9004467512

main90044-67512

9004468061N1

main90044-68061N1

9004468288

main90044-68288

9155380616

main91553-80616

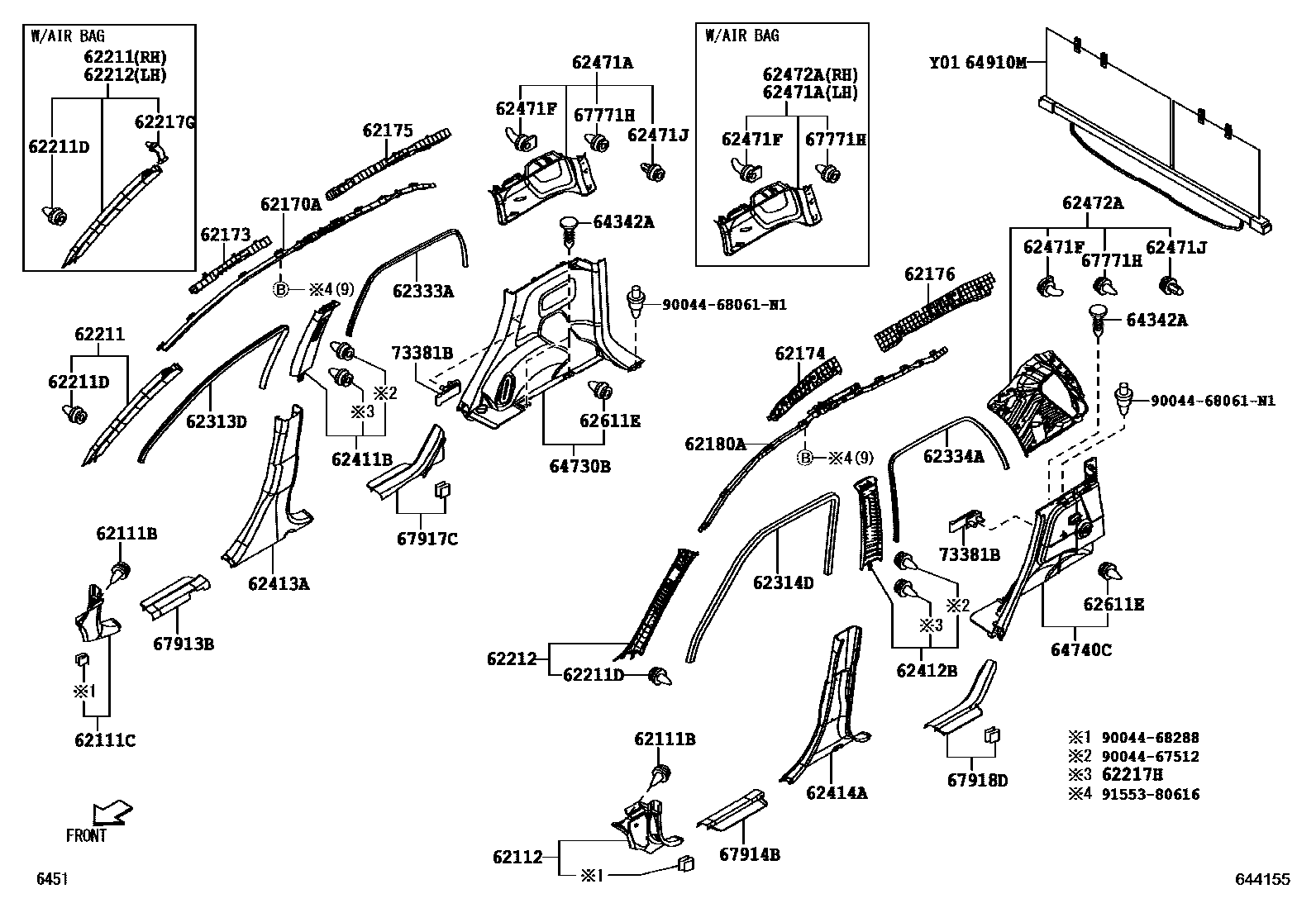

41 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD for Toyota RUSH

This section contains 41 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota RUSH. Key components include: CLIP(FOR COWL SIDE TRIM), BOARD, COWL SIDE TRIM, RH, BOARD, COWL SIDE TRIM, LH, AIRBAG ASSY, CURTAIN SHIELD, RH, GARNISH, SIDE WINDOW, FRONT RH.
