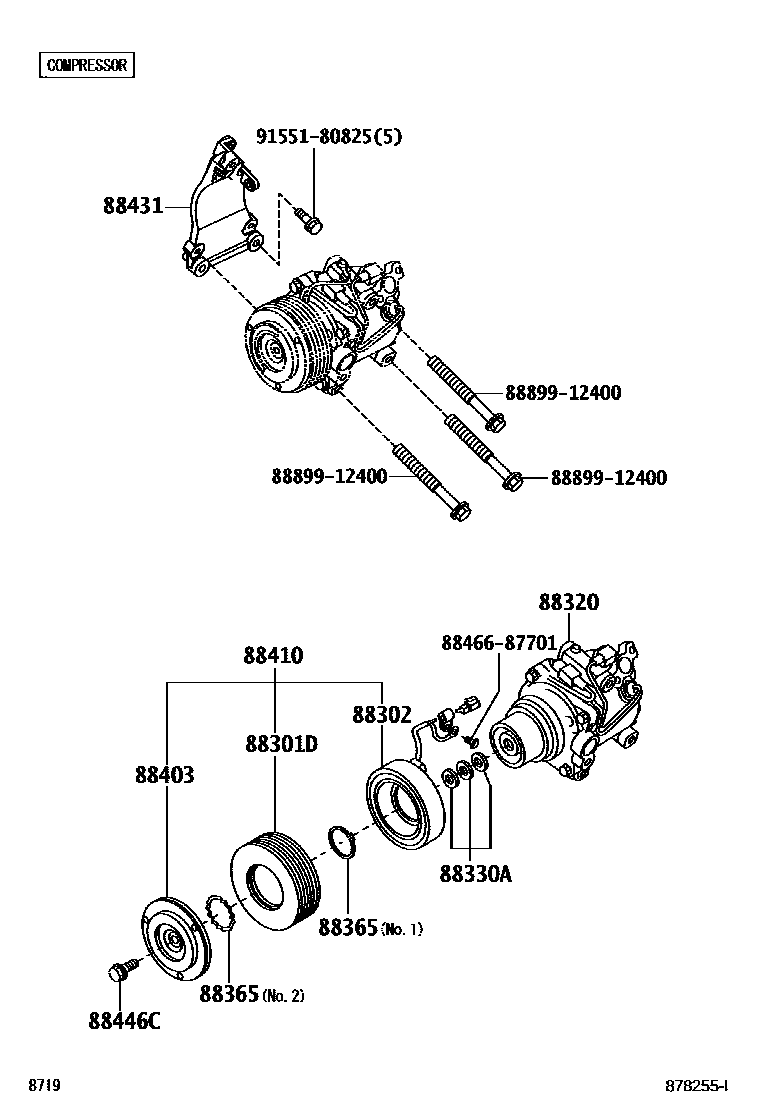

Toyota RUSH — HEATING & AIR CONDITIONING - COMPRESSOR

88301DROTOR, MAGNET CLUTCH, NO. 2

main88412-B4040i200601-200811

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-97401i200601-200811

88320COMPRESSOR ASSY, COOLER

main88320-B4010i200812-201605

main88320-BZ180i200811-200812

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704i200601-200811

main88318-87705i200601-200811

main88318-87706i200601-200811

88365RING, SNAP

main88365-87201i200601-200811

main90099-07125i200601-200811

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-97201i200601-200811

main88403-B4010i200811-201409

88410CLUTCH ASSY, MAGNET

main88410-B4020i200601-200811

main88410-B4040i200811-201409

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-B4020i200601-200811

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349i200601-200811

8846687701

main88466-87701

8889912400COVER, EVAPORATOR

main88899-12400

9155180825

main91551-80825

12 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota RUSH

This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota RUSH. Key components include: ROTOR, MAGNET CLUTCH, NO. 2, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), GASKET KIT, OVERHAUL.
