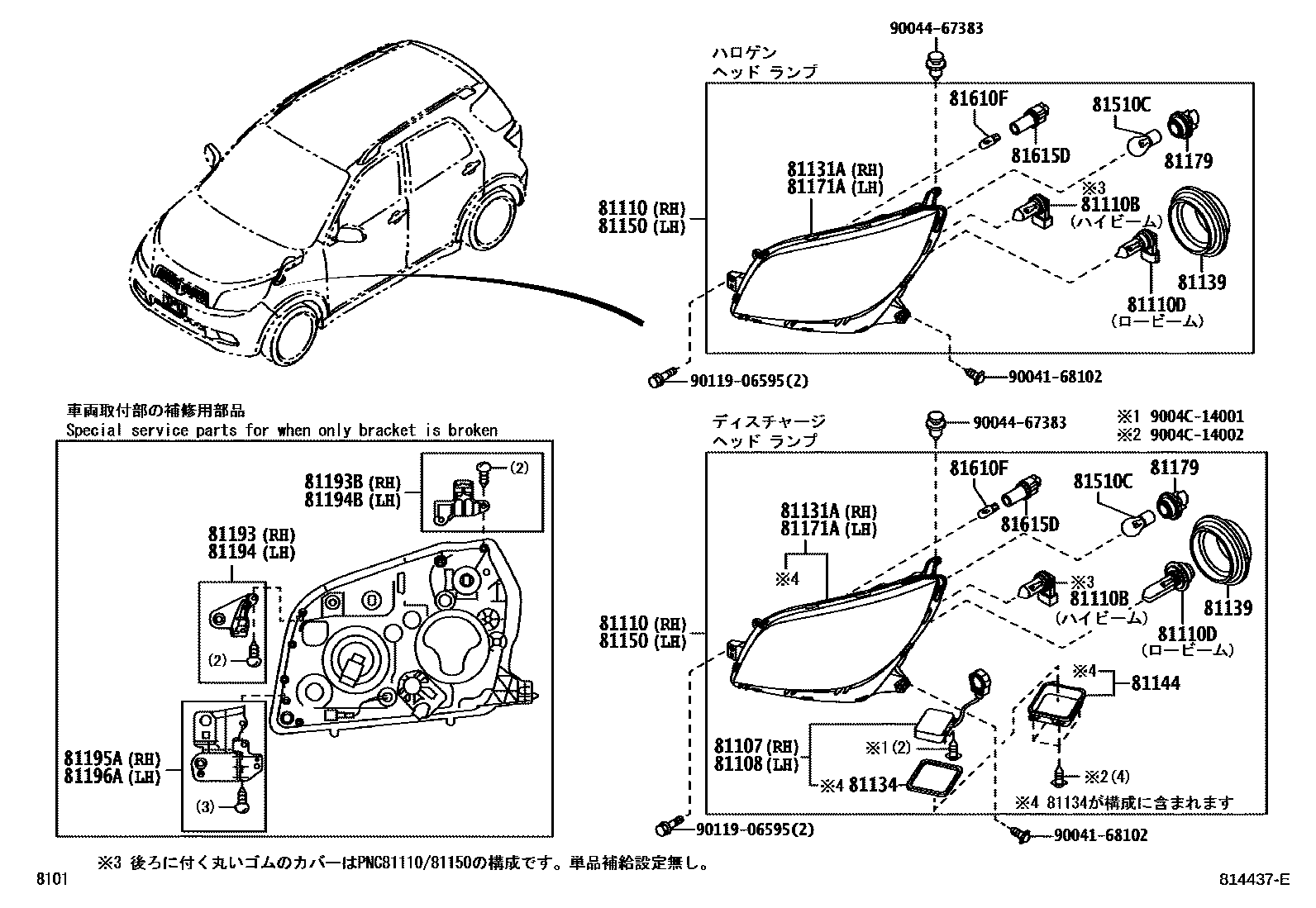

Toyota RUSH — HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
81110DBULB(FOR HEADLAMP, NO.2)
81131AUNIT, HEADLAMP, RH
81134GASKET, HEADLAMP
81139COVER, HEADLAMP SOCKET
81144COVER, HEADLAMP, NO.1
81150HEADLAMP ASSY, LH
81171AUNIT, HEADLAMP, LH
81179COVER, HEADLAMP SOCKET
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
9004168102
main90041-68102
9004467383
main90044-67383
9004C14001
main9004C-14001
9004C14002
main9004C-14002
9011906595
main90119-06595
26 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota RUSH
This section contains 26 genuine Toyota parts for the HEADLAMP system of the Toyota RUSH. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
