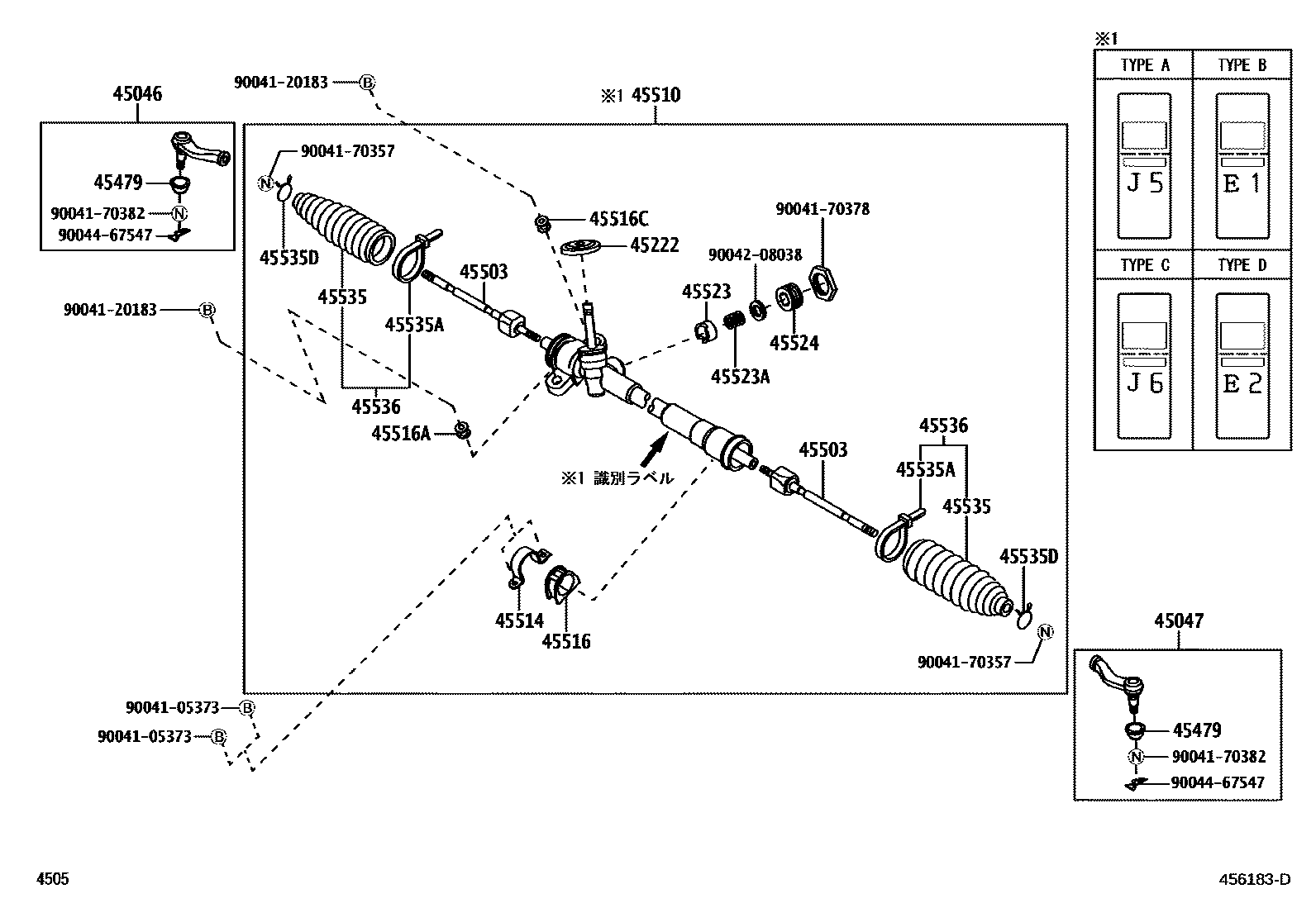

Toyota RUSH — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-B9080i200601-200706

main45046-B9320i200811-201409

45047END SUB-ASSY, TIE ROD, LH

main45047-B9070i200601-200706

main45047-B9270i200706-200811

45222COVER, STEERING GEAR DUST

main45222-87402i200601-200811

45479SEAL, STEERING LINK JOINT DUST

main45479-87508×2i200601-200811

45503END SUB-ASSY, STEERING RACK

main45503-87401×2i200601-200811

45510GEAR ASSY, STEERING

main45510-B4010i200601-200710

main45510-B4011i200711-200811

main45510-B4012i200811-201210

main45510-B4013i201210-201409

main45510-B4020supersedes 45510-B4013i200601-200603

main45510-B4021supersedes 45510-B4013i200711-200811

main45510-B4022i200811-201210

main45510-B4023i201210-201605

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-B4010i200601-200811

main45514-B4020i200906-201409

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-B4010i200601-200811

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-B2030i200601-200811

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-B4020i200601-200811

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-B4010i200601-200811

main45523-B4011i200811-201409

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90045-01818i200601-200811

45524CAP, STEERING RACK GUIDE SPRING

main45524-B1010i200601-200811

45535BOOT, STEERING RACK, NO.1

main45535-97501×2i200601-200811

45535ACLAMP(FOR STEERING RACK BOOT)

main45536-87205×2i200601-200811

main45538-B2020×2i201212-201409

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45537-97201×2i200601-200811

45536BOOT, STEERING RACK, NO.2

main45535-B9030×2i200601-200811

9004105373

main90041-05373

9004120183

main90041-20183

9004170357

main90041-70357

9004170378

main90041-70378

9004170382

main90041-70382

9004208038

main90042-08038

9004467547

main90044-67547

24 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota RUSH

This section contains 24 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota RUSH. Key components include: END SUB-ASSY, TIE ROD, RH, END SUB-ASSY, TIE ROD, LH, COVER, STEERING GEAR DUST, SEAL, STEERING LINK JOINT DUST, END SUB-ASSY, STEERING RACK.
