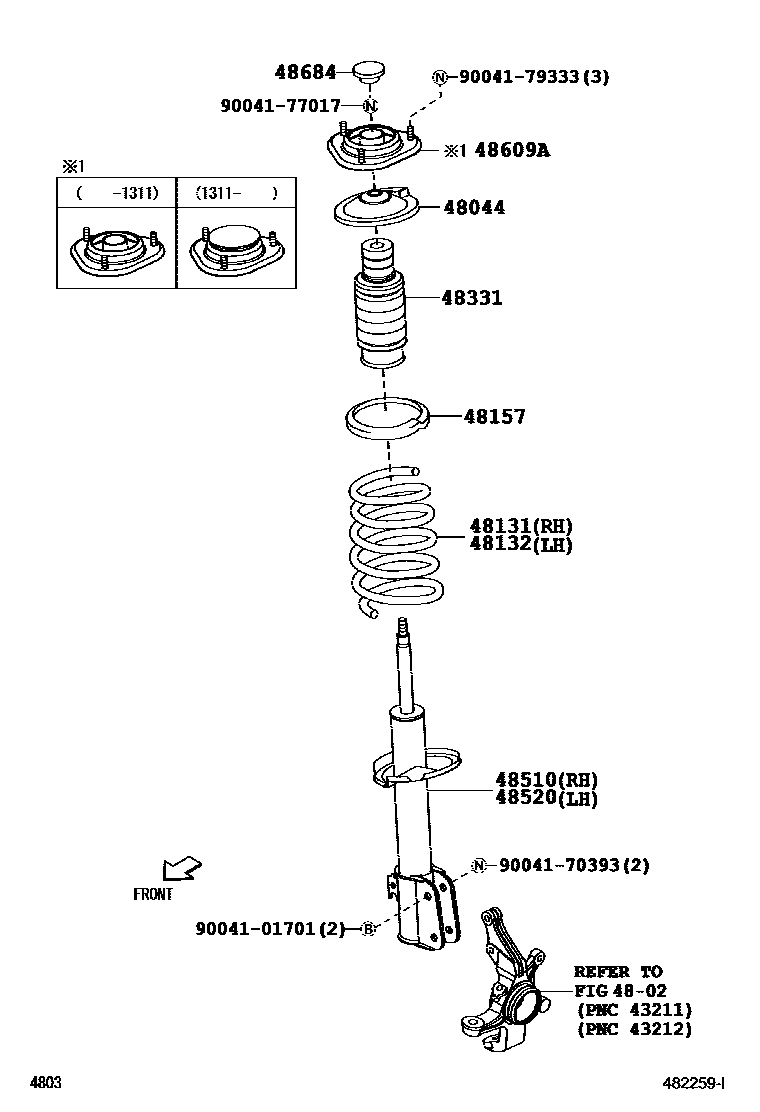

Toyota RUSH — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-B4010×2iJ200,210200601-200811

48131SPRING, FRONT COIL, RH

main48131-B4050supersedes 48131-B4010iJ210200601-200811

main48131-B4070supersedes 48131-B4010iJ210200603-200811

48132SPRING, FRONT COIL, LH

main48131-B4010iJ210200811-200908

main48131-B4030iJ210..G200811-200908

main48131-B4080iJ210200908-201605

main48131-B4090iJ200200908-201409

main48131-B4050supersedes 48131-B4010iJ210200601-200811

main48131-B4070supersedes 48131-B4010iJ210200601-200603

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-B4010×2iJ210200811-201605

48331BUMPER, FRONT SPRING, NO.1

main48331-B4010×2iJ200200811-201409

main48331-B4020×2supersedes 48331-B4010iJ210200601-200811

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-B4012iJ210201401-201605

main48510-B4060supersedes 48510-B4011iJ210200601-200811

sub48510-B4061

main48510-B4070supersedes 48510-B4032iJ200200601-200811

sub48510-B4072

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-B4012iJ210201401-201605

main48510-B4060supersedes 48510-B4011iJ210200601-200811

sub48510-B4061

main48510-B4070supersedes 48510-B4032iJ200200601-200811

sub48510-B4072

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-87403×2iJ200,210200601-200811

main48609-B4020×2iJ200201311-201409

48684COVER, BEARING DUST

main48684-87701×2iJ210200811-201605

9004101701

main90041-01701

9004170393

main90041-70393

9004177017

main90041-77017

9004179333

main90041-79333

14 parts on this diagram · 3 diagrams in section
