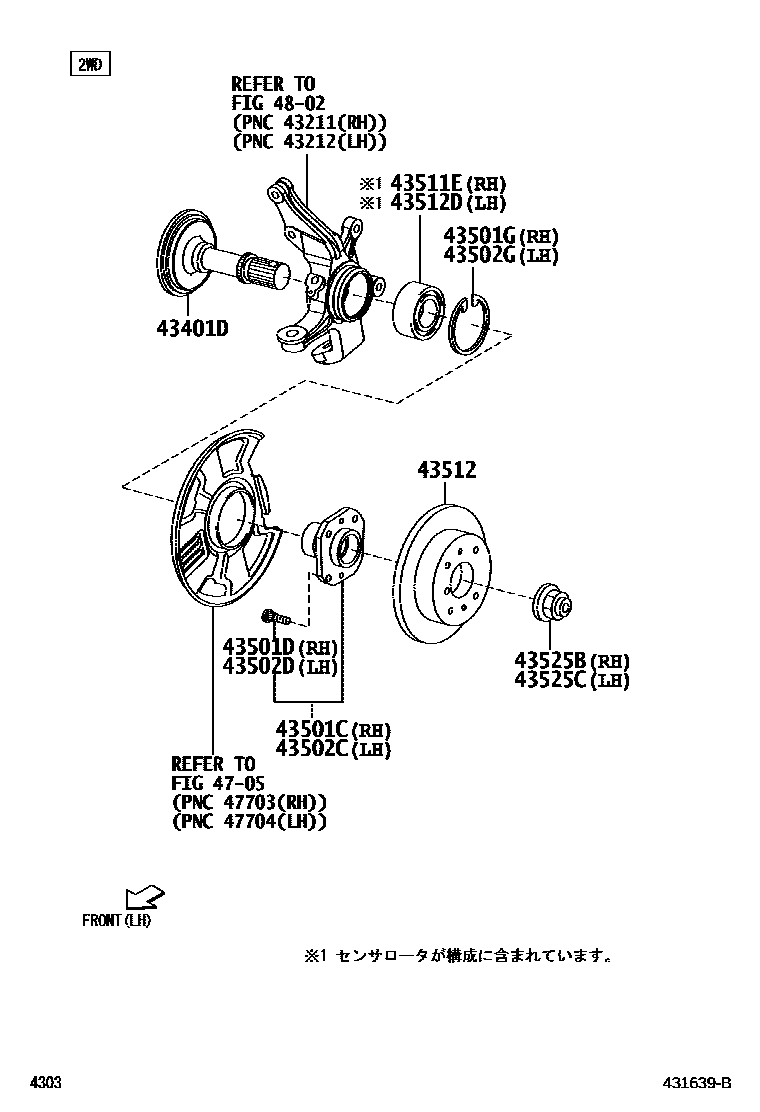

Toyota RUSH — FRONT AXLE HUB

43401DSPINDLE SUB-ASSY, STEERING KNUCKLE

main43401-B4010200601-201409

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-87401200601-201605

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12055200601-201605

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21111200601-201605

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-87401200601-201605

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12055200601-201605

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21111200601-201605

43511EBEARING (FOR FRONT AXLE HUB RH)

main90043-63315200601-200805

main90043-63369200806-201605

43512DISC, FRONT

main43512-B4010201302-201605

main43512-B4020200601-201409

43512DBEARING (FOR FRONT AXLE HUB LH)

main90043-63315200601-200805

main90043-63369200806-201605

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main90041-70379200601-201605

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main90041-70379200601-201605

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

14 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota RUSH

This section contains 15 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota RUSH. Key components include: FRONT DRIVE SHAFT, SPINDLE SUB-ASSY, STEERING KNUCKLE, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
