Toyota RUSH — ELECTRONIC FUEL INJECTION SYSTEM

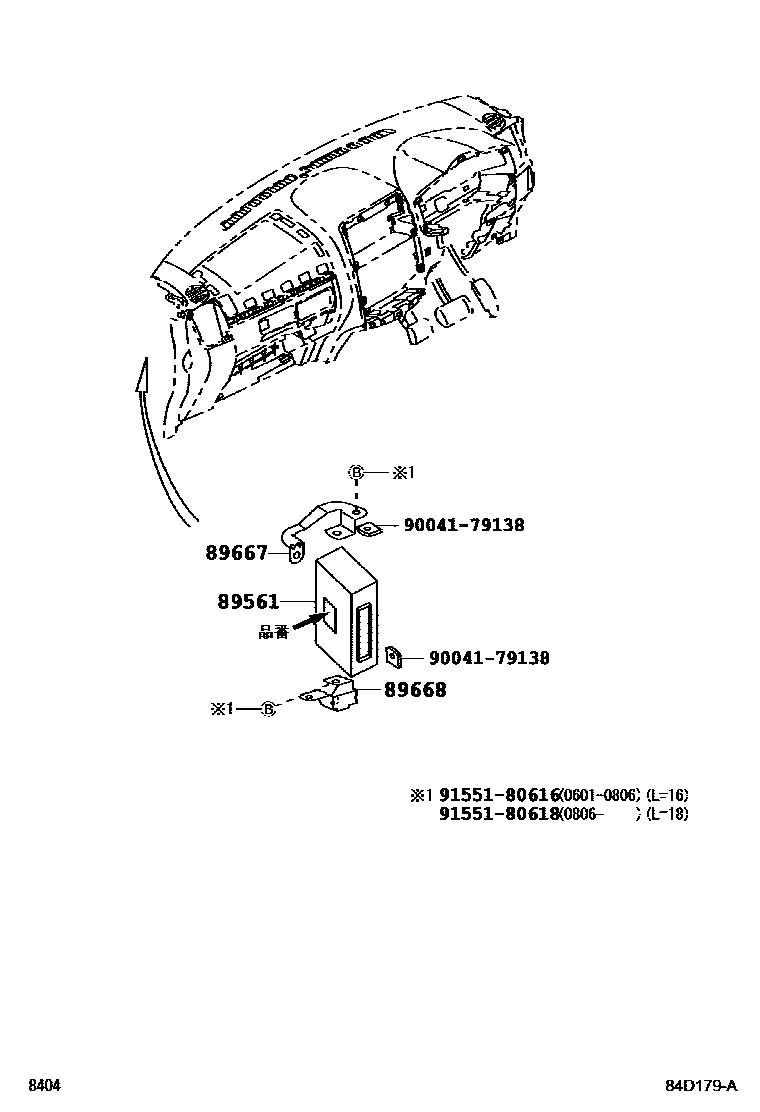

Parts diagram

89561COMPUTER, FUEL INJECTION

main89560-B4550i201302-201409

main89560-B4620i200811-201007

main89560-B4640i200811-201007

main89560-B4051supersedes 89560-B4061i200801-200811

main89560-B4060supersedes 89560-B4051i200601-200606

main89560-B4061supersedes 89560-B4051i200607-200811

main89560-B4070supersedes 89560-B4080i200801-200811

main89560-B4080supersedes 89560-B4070i200601-200811

main89560-B4560i201302-201303

main89560-B4561i201304-201605

main89560-B4630i200811-201007

main89560-B4650i200811-201007

main89560-B4A70supersedes 89560-B4A60i201007-201302

main89560-B4A90supersedes 89560-B4A80i201007-201302

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-B4010i200601-200811

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-B4010i200811-201605

9004179138

main90041-79138

9155180616

main91551-80616

9155180618

main91551-80618

6 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota RUSH

This section contains 6 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota RUSH. Key components include: COMPUTER, FUEL INJECTION, BRACKET, ENGINE CONTROL COMPUTER, BRACKET, ENGINE CONTROL COMPUTER, NO.2.
