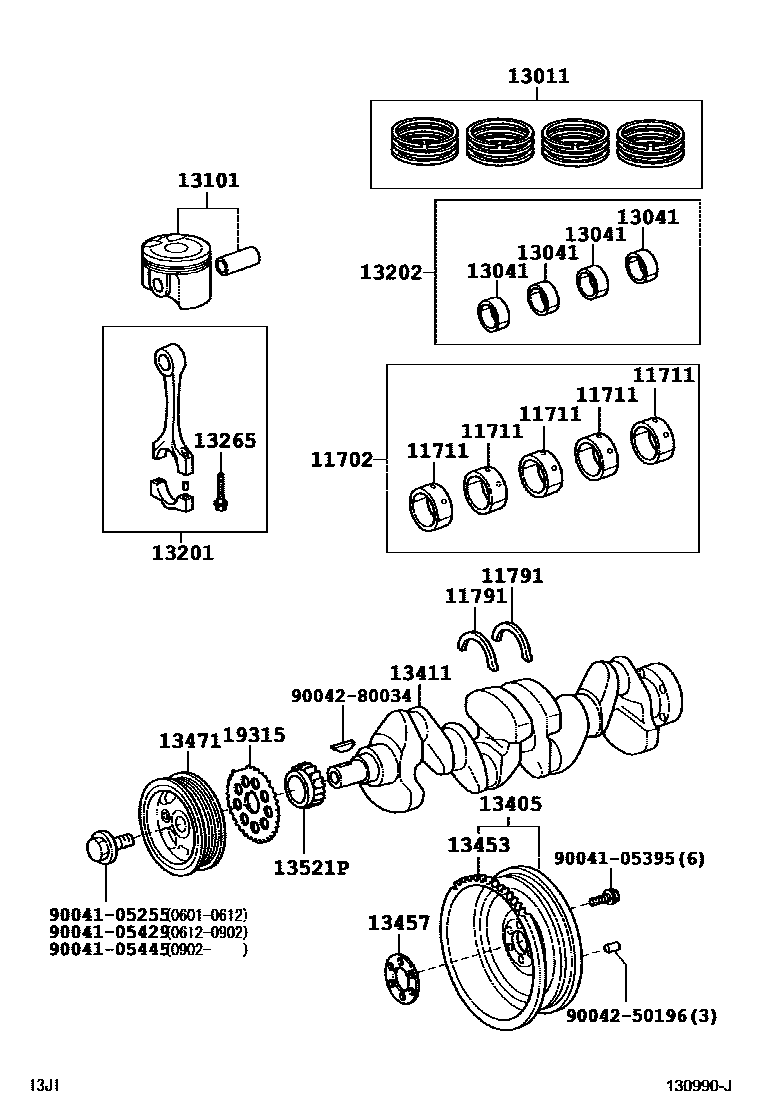

Toyota RUSH — CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
11711BEARING, CRANKSHAFT
11791WASHER, CRANKSHAFT THRUST, UPPER
13011RING SET, PISTON
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
13457RING, FLYWHEEL SPACER
13471PULLEY, CRANKSHAFT
13521PPULLEY, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
9004105255
main90041-05255
9004105395
main90041-05395
9004105429
main90041-05429
9004105445
main90041-05445
9004250196
main90042-50196
9004280034
main90042-80034
22 parts on this diagram · 1 diagram in section
CRANKSHAFT & PISTON for Toyota RUSH
This section contains 22 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota RUSH. Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
