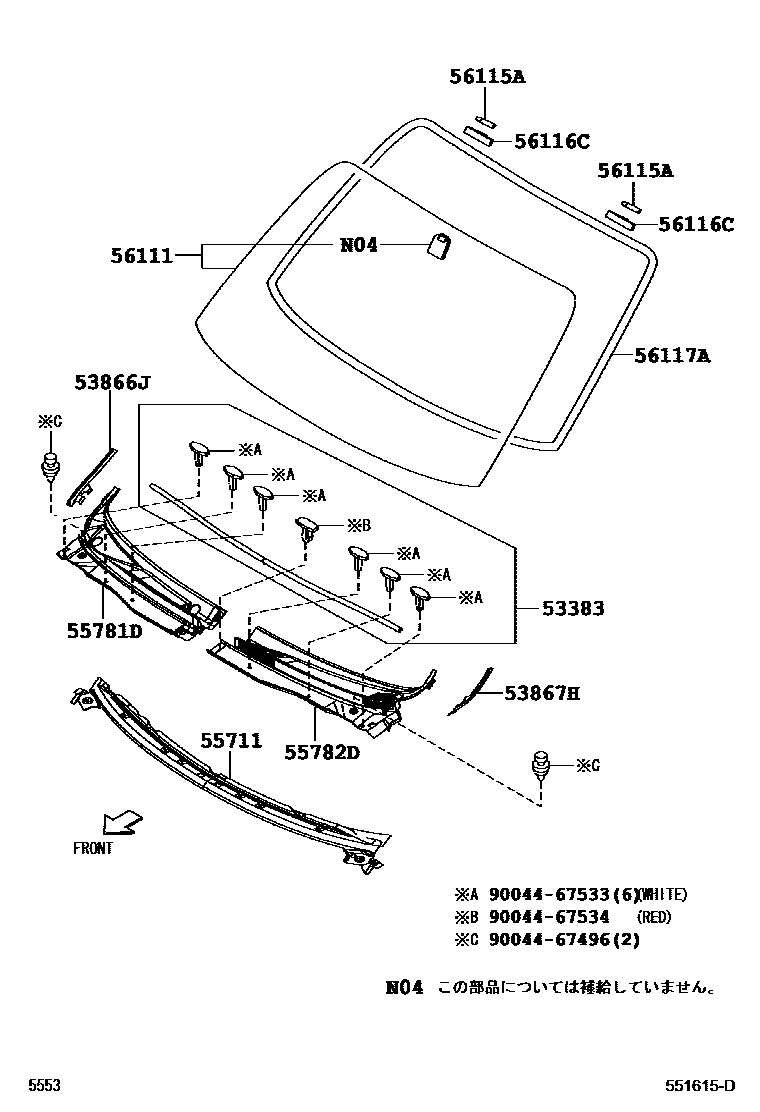

Toyota RUSH — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

53383SEAL, HOOD TO COWL TOP

main53383-B4010iJ200,210200601-200811

main53383-B4011iJ200200811-201409

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53868-B4010iJ200200811-201409

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53869-B4010iJ200200811-201409

55711PANEL, COWL TOP, OUTER

main55711-B4010iJ210200811-201605

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-B4010iJ200,210200601-200811

main55781-B4011iJ200201002-201409

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-B4030supersedes 55782-B4010iJ200,210200601-200811

main55782-B4031supersedes 55782-B4011iJ200201002-201409

56111GLASS, WINDSHIELD

main56101-B4020supersedes 56101-B4010iJ200,210200601-200811

main56101-B4050supersedes 56101-B4041iJ200200811-201409

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-B5020×2iJ200200811-201409

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2iJ200,210200601-200811

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B1010iJ200200811-201409

main56117-B4010iJ200,210200601-200811

9004467496

main90044-67496

9004467533

main90044-67533

9004467534

main90044-67534

13 parts on this diagram · 3 diagrams in section
