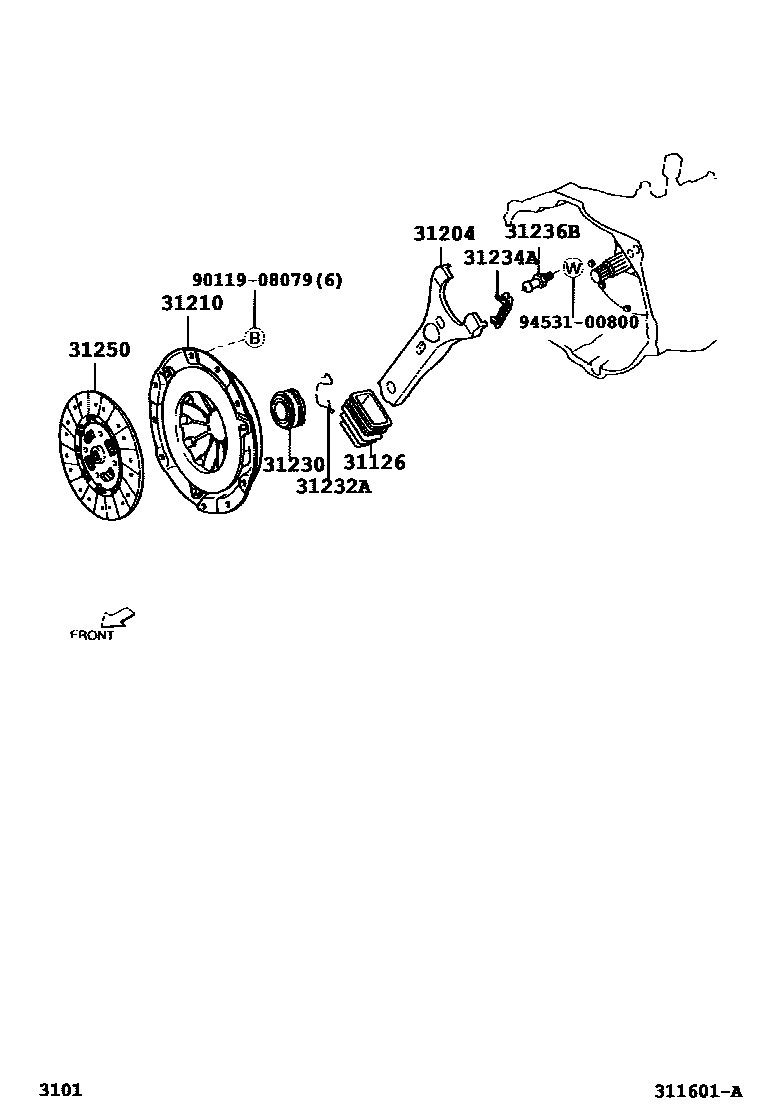

Toyota RUSH — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iJ210..5F200811-201302

31204FORK SUB-ASSY, CLUTCH RELEASE

main31233-87402iJ210..5F200601-200811

31210COVER ASSY, CLUTCH

main31210-B4010iJ210..5F200601-200811

31230BEARING ASSY, CLUTCH RELEASE

main31230-87507iJ210..5F200601-200811

main31230-97502iJ210..5F200811-201110

main31230-B4010iJ210..5F201110-201302

31232ACLIP, RELEASE BEARING HUB

main31232-87401iJ210..5F200601-200811

31234ASPRING, RELEASE FORK SUPPORT

main31234-87402iJ210..5F200601-200811

31236BSUPPORT, RELEASE FORK

main31236-87401iJ210..5F200601-200811

31250DISC ASSY, CLUTCH

main31250-B4010iJ210..5F200601-200811

9011908079

main90119-08079

9453100800

main94531-00800

10 parts on this diagram · 1 diagram in section
