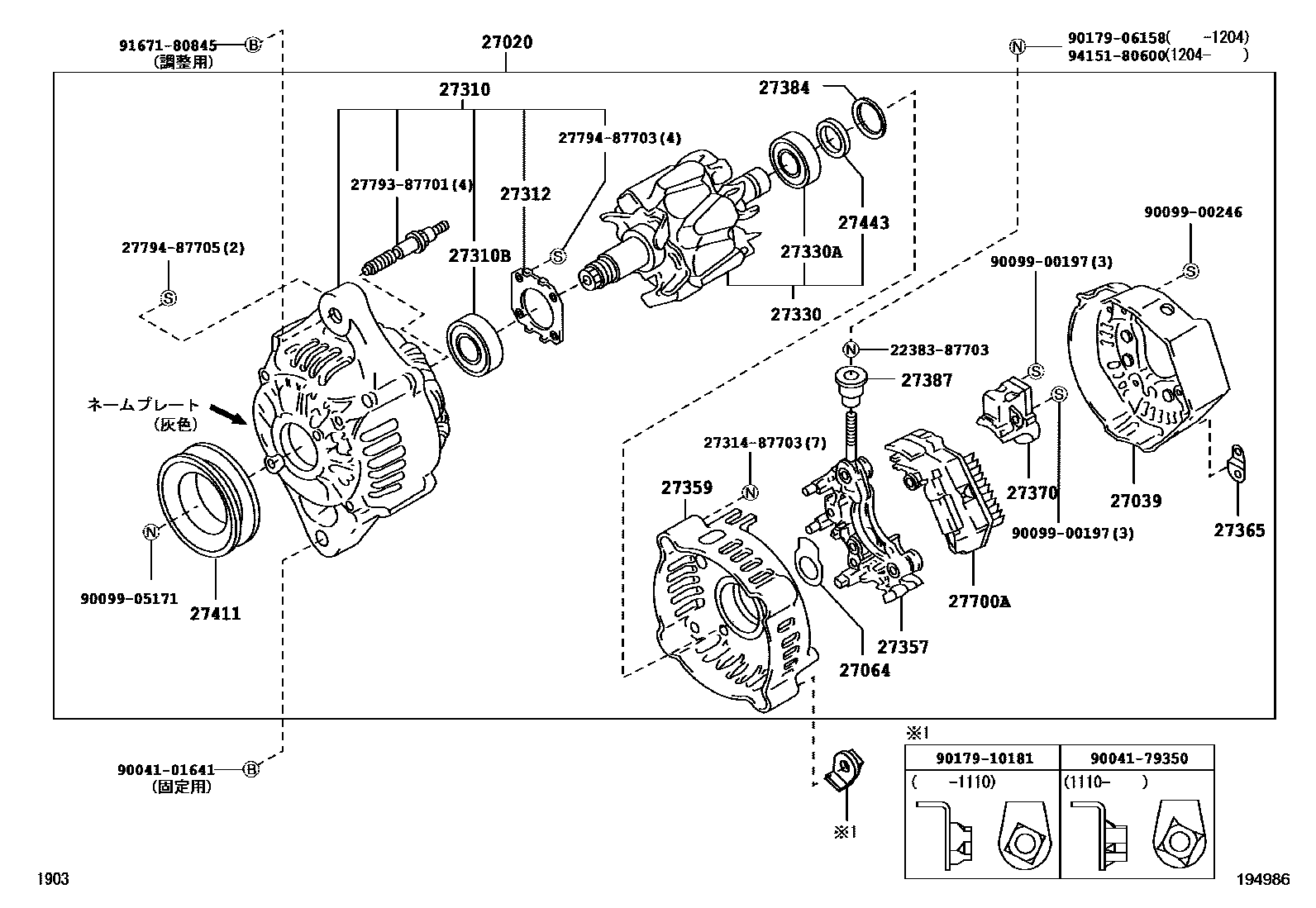

Toyota RUSH — ALTERNATOR
27020ALTERNATOR ASSY
27039COVER, ALTERNATOR REAR END
27064SEAL, ALTERNATOR PLATE
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27365PLATE, TERMINAL
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
2238387703NUT, STOP WIRE BRACKET
main22383-87703
2731487703
main27314-87703
2779387701
main27793-87701
2779487703
main27794-87703
2779487705
main27794-87705
9004101641
main90041-01641
9004179350
main90041-79350
9009900197
main90099-00197
9009900246
main90099-00246
9009905171
main90099-05171
9017906158
main90179-06158
9017910181
main90179-10181
9167180845
main91671-80845
9415180600
main94151-80600
31 parts on this diagram · 2 diagrams in section
ALTERNATOR for Toyota RUSH
This section contains 34 genuine Toyota parts for the ALTERNATOR system of the Toyota RUSH. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, SEAL, ALTERNATOR PLATE, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
