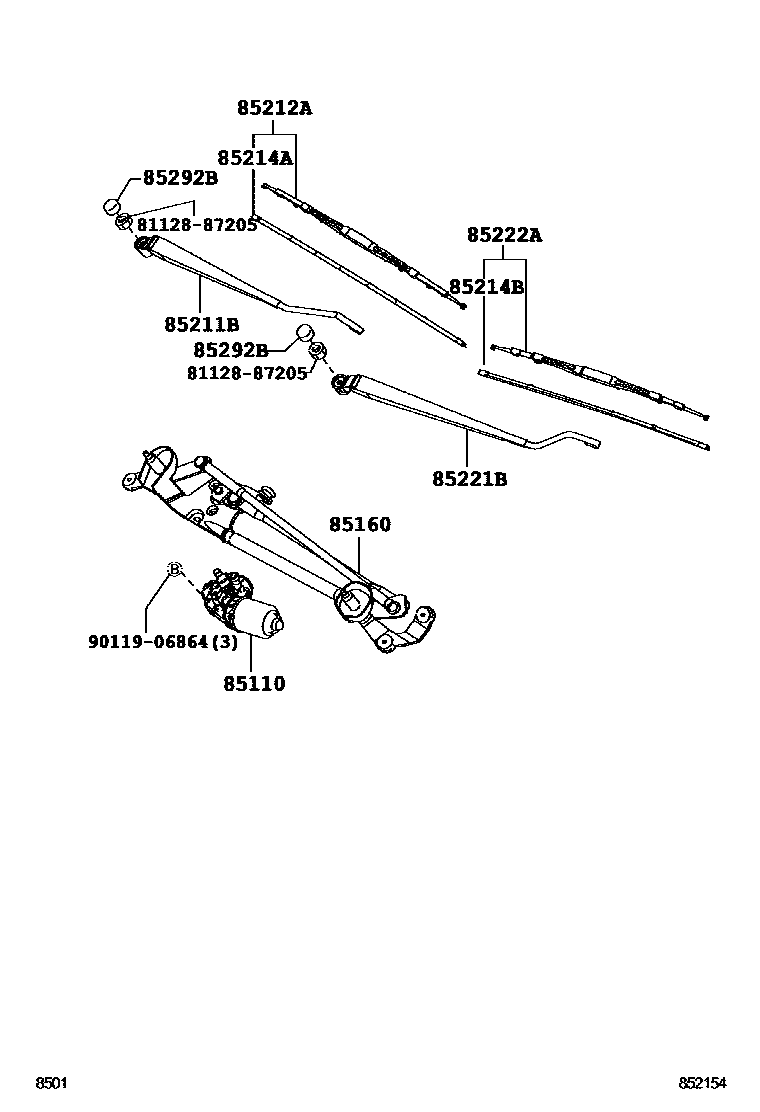

Toyota RUSH — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
8112887205NUT, HEADLAMP
main81128-87205
9011906864
main90119-06864
11 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota RUSH
This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RUSH. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
