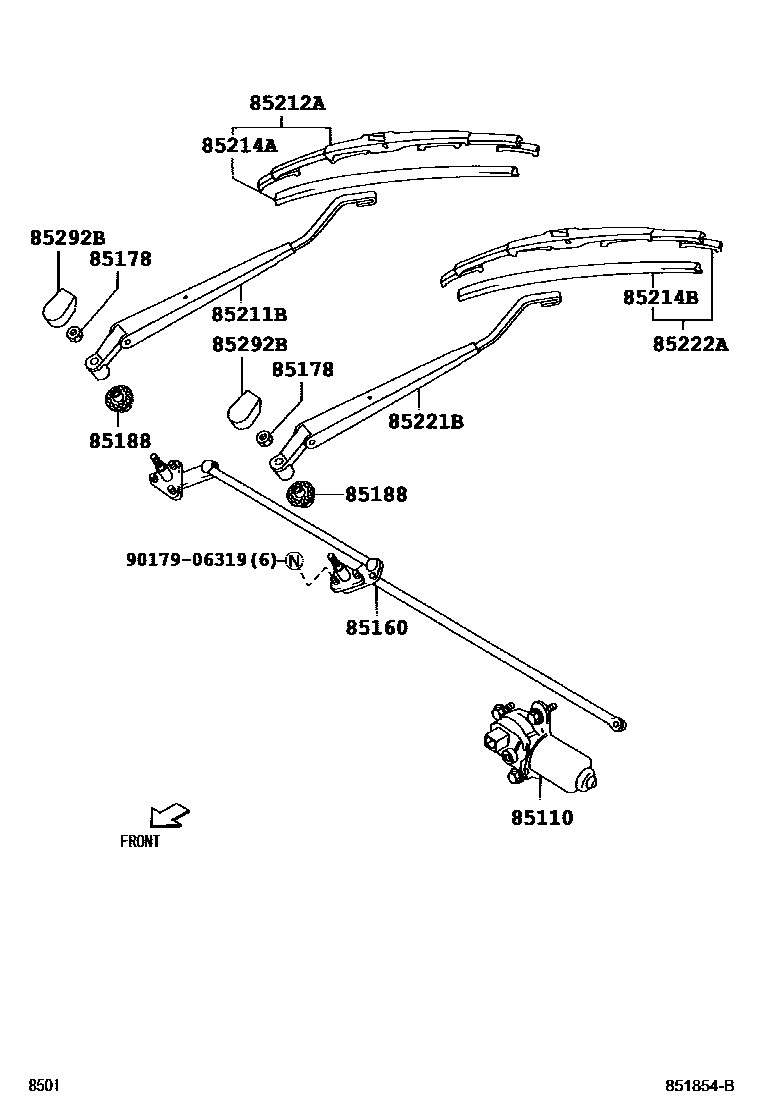

Toyota RUSH — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ060iF700200612-201009

85160LINK ASSY, WINDSHIELD WIPER

main85150-BZ060iF700200612-201009

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205×2iF700200612-201009

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85159-BZ020×2iF700200612-201009

85211BARM, FRONT WIPER, RH

main85211-BZ080iF700200612-201009

85212ABLADE, FR WIPER, RH

main85212-BZ060iF700200612-201009

85214ARUBBER, WIPER, RH

main85214-BZ090iF700200612-201009

main85214-BZ250iF700201508

85214BRUBBER, WIPER, LH

main85214-BZ100iF700200612-201009

85221BARM, FRONT WIPER, LH

main85221-BZ080iF700200612-201009

85222ABLADE, FR WIPER, LH

main85222-BZ060iF700200612-201009

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020×2iF700200612-201009

main85292-BZ110×2iF700201608

9017906319

main90179-06319

12 parts on this diagram · 1 diagram in section
