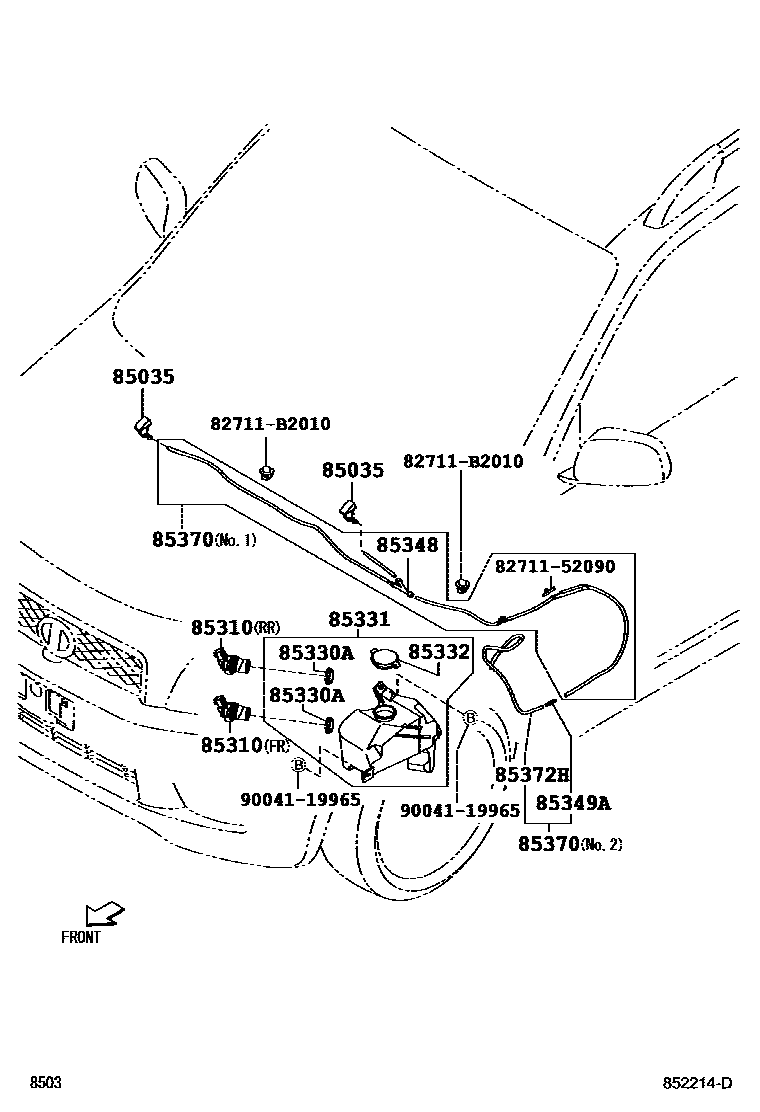

Toyota RUSH — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-B4010×2i200811-200911

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-97502i200811-200911

FRONT

main85310-97503i200811-200911

REAR

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202×2i200811-200911

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-B4010i200811-200911

W/O(PAINTED)

main85315-B4030i201605

PAINTED=BLACK

85332CAP, WINDSHIELD WASHER JAR

main85332-87401i200811-200911

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-87201i200811-200911

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-87201i200811-200911

85370HOSE ASSY, WINDSHIELD WASHER

main85370-B4020i200811-200911

NO.1

main85370-B4030i200811-200911

NO.2

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85343-97401i200811-200911

*H,L=590

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

82711B2010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-B2010

9004119965

main90041-19965

12 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota RUSH

This section contains 13 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota RUSH. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR & PUMP ASSY, WASHER, BUSH, WINDSHIELD WASHER JAR, JAR SUB-ASSY, WINDSHIELD WASHER.
