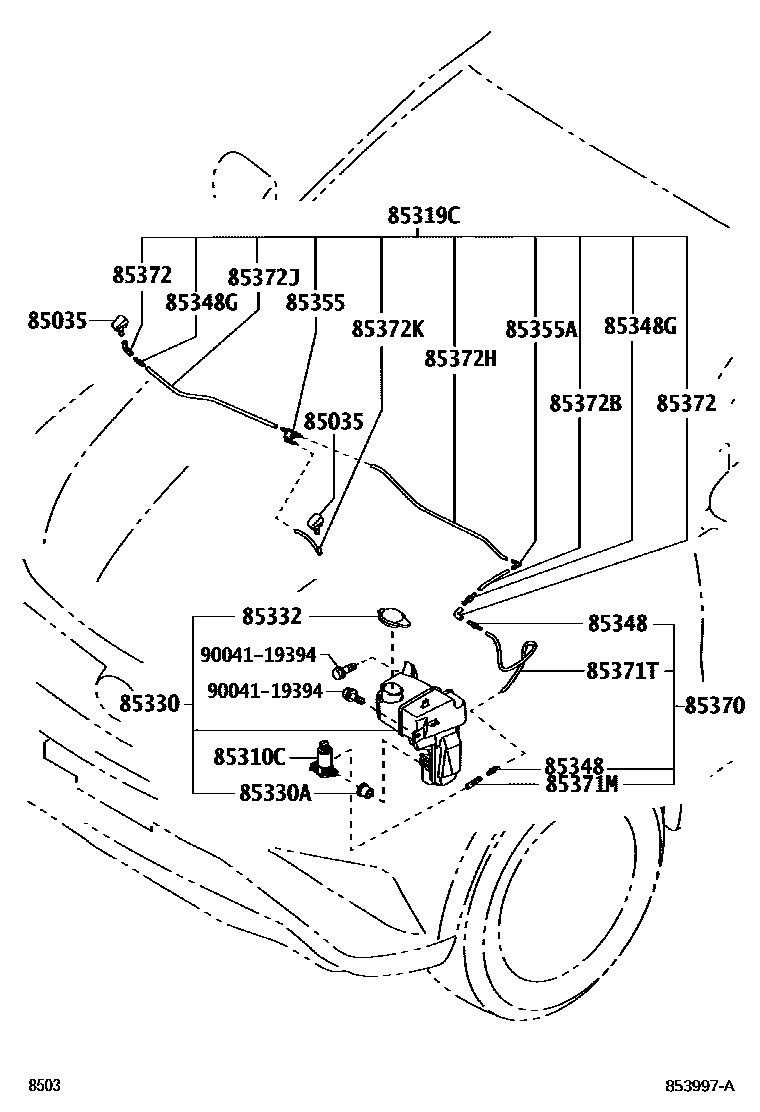

Toyota RUSH — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-BZ160×2iF850201812-202310

85310CMOTOR & PUMP ASSY, WASHER

main85330-BZ180iF850201812-202310

85319CHOSE, WASHER

main85370-BZB00iF850201812-202310

85330JAR ASSY, WINDSHIELD WASHER

main85315-BZ160iF850201812-202310

85330ABUSH, WINDSHIELD WASHER JAR

main90044-80454iF850201812-202310

85332CAP, WINDSHIELD WASHER JAR

main85332-BZ010iF850201812-202310

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-BZ080×2iF850201812-202310

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-BZ080×2iF850201812-202310

85355VALVE, WINDSHIELD WASHER HOSE

main85376-B1010iF850201812-202310

85355AJOINT, WINDSHIELD WASHER ELBOW

main85376-BZ020iF850201812-202310

85370HOSE ASSY, WINDSHIELD WASHER

main85370-BZ890iF850201812-202310

85371MHOSE, WINDSHIELD WASHER (FROM JOINT TO TANK)

main85355-87701iF850201812-202310

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main85374-BZ880iF850201812-202310

*H,L=470

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85355-87701×2iF850201812-202310

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-BZE90iF850201812-202310

*H,L=90

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-BZB50iF850201812-202310

*H,L=430

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85374-BZB00iF850201812-202310

*H,L=380

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main85374-BZF00iF850201812-202310

*H,L=140

9004119394

main90041-19394

19 parts on this diagram · 1 diagram in section
