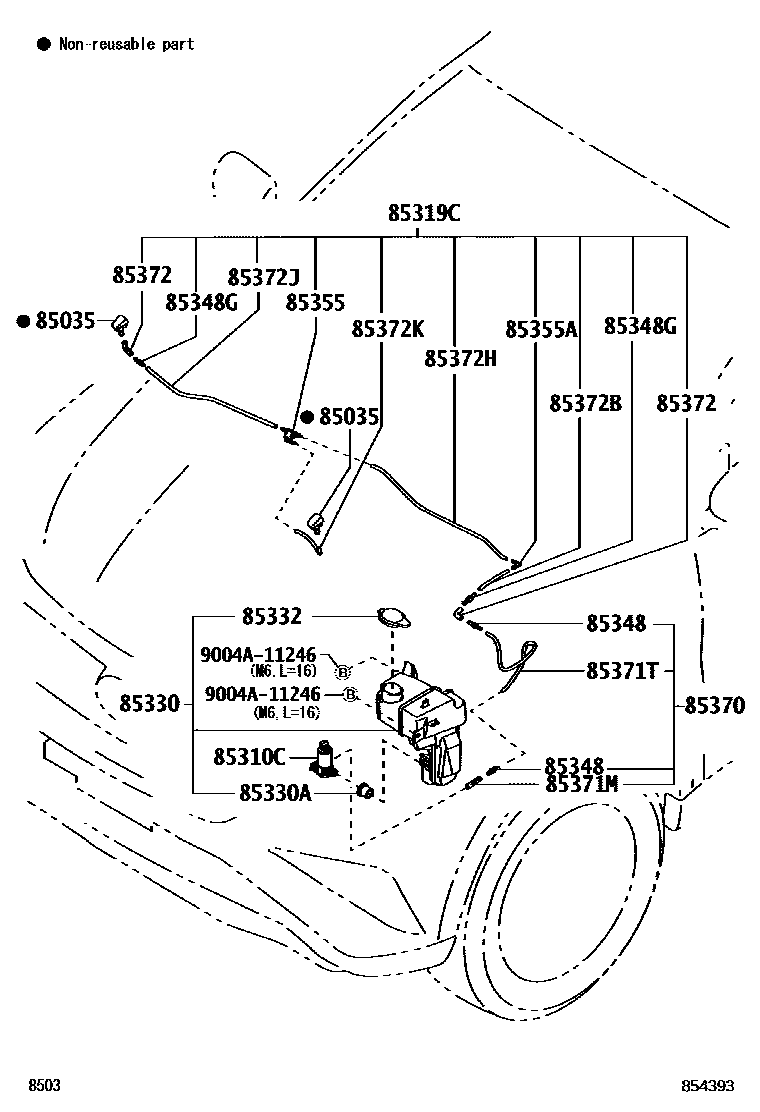

Toyota RUSH — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-BZ220×2iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

85310CMOTOR & PUMP ASSY, WASHER

main85330-BZ180iF800..MID..PH201712-202305

85319CHOSE, WASHER

main85370-BZB00iF800..RHD201712

main85370-BZB10iF800..MID..PH201804-202305

85330JAR ASSY, WINDSHIELD WASHER

main85315-BZ160iF800..MID..PH201712-202305

85330ABUSH, WINDSHIELD WASHER JAR

main90044-80454iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

85332CAP, WINDSHIELD WASHER JAR

main85332-97202iF800..MID..PH201712-202305

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-BZ080×2iF800..MID..PH201712-202305

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-BZ080×3iF800..MID..PH201804-202305

85355VALVE, WINDSHIELD WASHER HOSE

main85376-B1010iF800..MID..PH201712-202305

85355AJOINT, WINDSHIELD WASHER ELBOW

main85376-BZ020iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

85370HOSE ASSY, WINDSHIELD WASHER

main85370-BZ890iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

85371MHOSE, WINDSHIELD WASHER (FROM JOINT TO TANK)

main85355-87701iF800..MID..PH201712-202305

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main85374-BZ880iF800..MID..PH201712-202305

*H,L=470

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85355-87701×3iF800..MID..PH201804-202305

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-BZE90iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

*H,L=90

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-BZB50iF800..RHD201712

*H,L=430

main85374-BZF30iF800..MID..PH201804-202305

*H,L=520

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85374-BZB00iF800..RHD201712

*H,L=380

main85374-BZF10iF800..MID..PH201804-202305

*H,L=340

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main85374-BZF00iF800..RHD201712

*H,L=140

main85374-BZF20iF800..MID..PH201804-202305

*H,L=130

9004A11246

main9004A-11246

19 parts on this diagram · 2 diagrams in section
