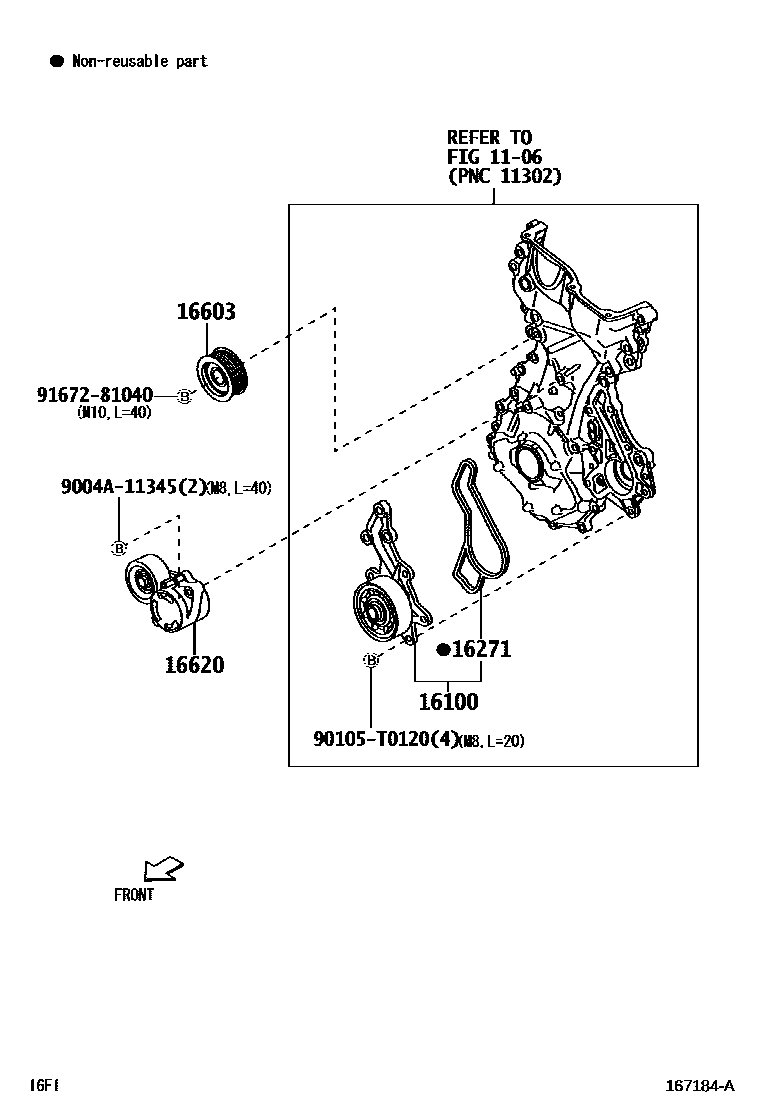

Toyota RUSH — WATER PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-B9490i201812-202310

16271GASKET, WATER PUMP

main16271-0Y030i201812-202310

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-BZ041i201812-202310

16620TENSIONER ASSY, V-RIBBED BELT

main16620-BZ010i201812-202310

9004A11345

main9004A-11345

90105T0120

main90105-T0120

9167281040

main91672-81040

8 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota RUSH

This section contains 8 genuine Toyota parts for the WATER PUMP system of the Toyota RUSH. Key components include: TIMING GEAR COVER & REAR END PLATE, PUMP ASSY, ENGINE WATER, GASKET, WATER PUMP, PULLEY SUB-ASSY, IDLER, NO.1, TENSIONER ASSY, V-RIBBED BELT.
