Toyota RUSH — WATER PUMP

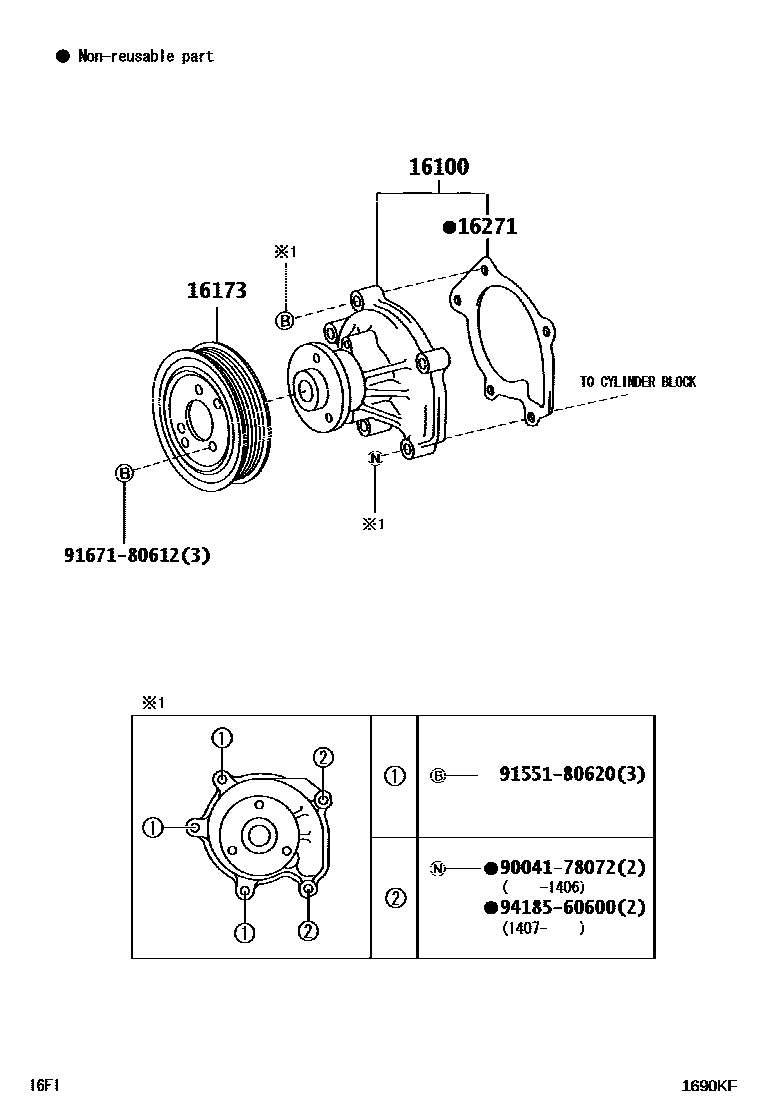

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-B9010i200612-201009

main16100-B9011i201412-201502

main16100-B9021i201302-201411

main16100-B9022i201503

16173PULLEY, WATER PUMP

main16173-BZ050i200612-201009

16271GASKET, WATER PUMP

main16271-BZ020i200612-201009

9004178072

main90041-78072

9155180620

main91551-80620

9167180612

main91671-80612

9418560600

main94185-60600

7 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota RUSH

This section contains 7 genuine Toyota parts for the WATER PUMP system of the Toyota RUSH. Key components include: PUMP ASSY, ENGINE WATER, PULLEY, WATER PUMP, GASKET, WATER PUMP.
