Toyota RUSH — VANE PUMP & RESERVOIR (POWER STEERING)

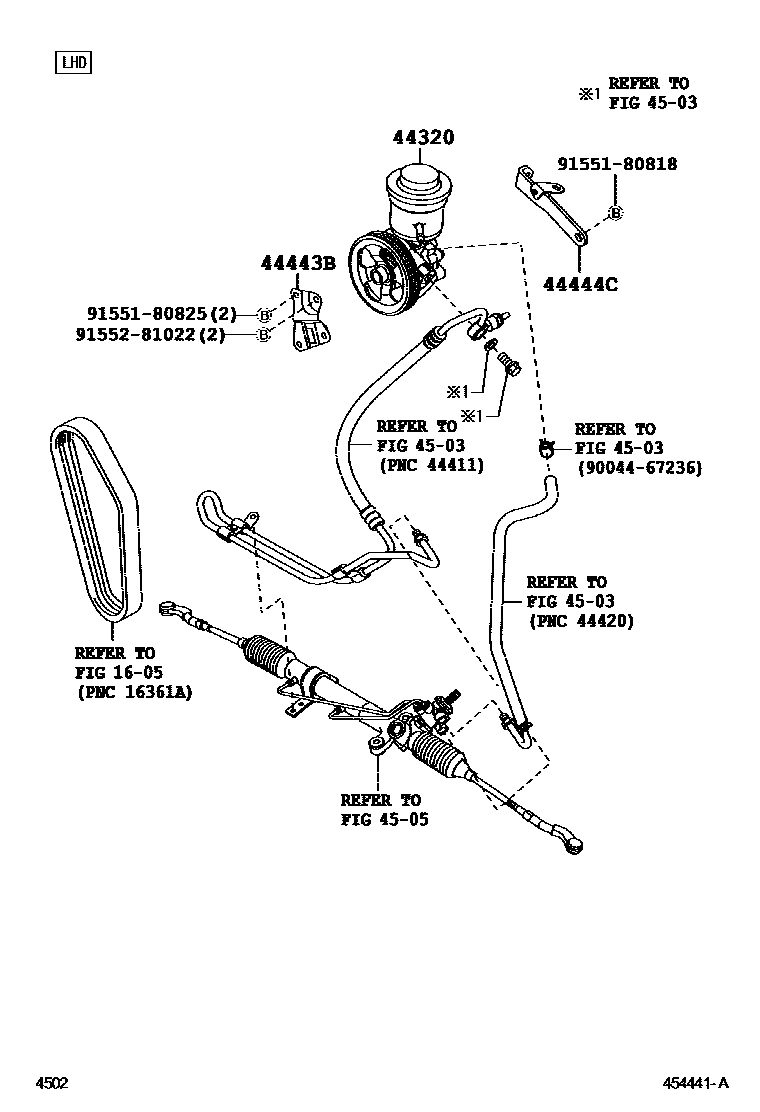

Parts diagram

1605V-BELT

→ Go to FIG 16-05

44320PUMP ASSY, VANE

main44310-B4010i200811-200911

44443BBRACKET, VANE PUMP

main44443-B4010i200811-200911

44444CSTAY, VANE PUMP, REAR

main44444-B4010i200811-200911

4503POWER STEERING TUBE

→ Go to FIG 45-03

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9155180818

main91551-80818

9155180825

main91551-80825

9155281022

main91552-81022

9 parts on this diagram · 1 diagram in section

VANE PUMP & RESERVOIR (POWER STEERING) for Toyota RUSH

This section contains 9 genuine Toyota parts for the VANE PUMP & RESERVOIR (POWER STEERING) system of the Toyota RUSH. Key components include: V-BELT, PUMP ASSY, VANE, BRACKET, VANE PUMP, STAY, VANE PUMP, REAR, POWER STEERING TUBE.
