Toyota RUSH — TRANSFER LEVER & SHIFT ROD

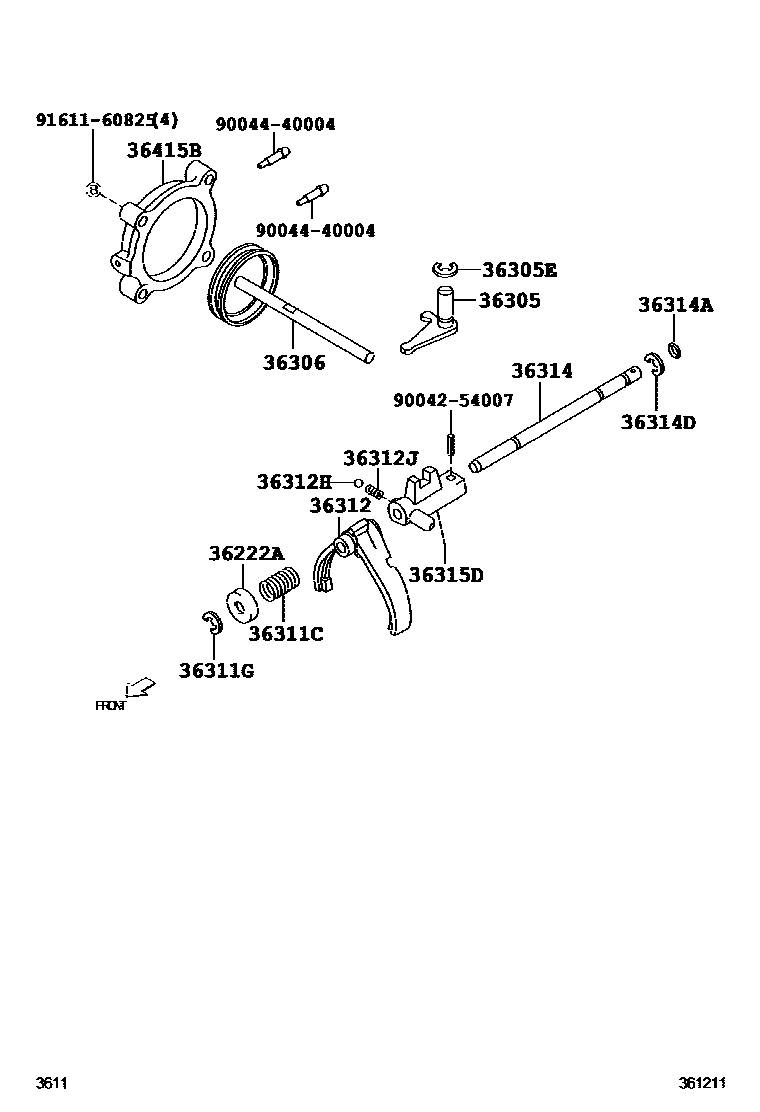

Parts diagram

36222AWASHER, TRANSFER CONTROL SHAFT

main36222-87401i201605

36305LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK

main36305-87502i201605

36305ERING, E(FOR FRONT DRIVE SHIFT LINK LEVER)

main90045-23007i201605

36306SHAFT SUB-ASSY, CONTROL

main36306-87508i201605

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90045-01739i201605

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90045-20262i201605

36312FORK, TRANSFER GEAR SHIFT, NO.2

main36312-87401i201605

36312HBALL (FOR TRANSFER GEAR SHIFT FORK NO.2)

main90043-60003i201605

36312JSPRING, COMPRESSION (FOR TRANSFER GEAR SHIFT FORK NO.2)

main90045-01267i201605

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-87401i201605

main36314-87402i201605

36314ARING, O (FOR TRANSFER SHIFT FORK SHAFT)

main96711-19009i201605

36314DRING, E (FOR TRANSFER SHIFT FORK SHAFT)

main96160-01000i201605

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36316-87401i201605

36415BCOVER, DIAPHRAGM CYLINDER

main36415-87501i201605

9004254007

main90042-54007

9004440004

main90044-40004

9161160825

main91611-60825

17 parts on this diagram · 1 diagram in section

TRANSFER LEVER & SHIFT ROD for Toyota RUSH

This section contains 17 genuine Toyota parts for the TRANSFER LEVER & SHIFT ROD system of the Toyota RUSH. Key components include: WASHER, TRANSFER CONTROL SHAFT, LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK, RING, E(FOR FRONT DRIVE SHIFT LINK LEVER), SHAFT SUB-ASSY, CONTROL, SPRING, COMPRESION (FOR SHIFT FORK).
