Toyota RUSH — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45102-B4040-B0i200811

DK.GRAY,TRIM1#

main45102-B4060-B0i201605

STEERING WHEEL-LEATH B(W/AIR BAG SW TMAR,DK.GRAY,TRIM1#

45130BUTTON ASSY, HORN

main45130-B0020-B0i201605

DK.GRAY,TRIM1#

main45130-B4100-B0i200811-200911

DK.GRAY,TRIM1#

45897BBOLT, STEERING LOCK SET

main45897-97202×2i200811-200911

main45897-B2020×2i201605

9004170014

main90041-70014

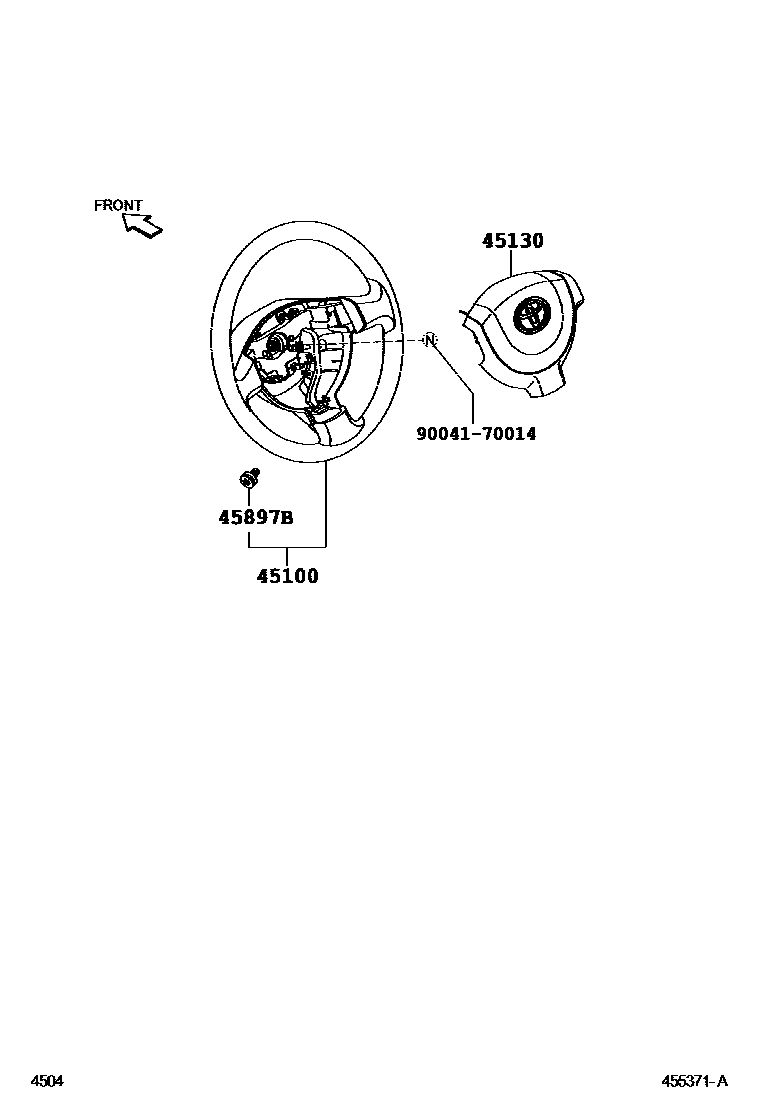

4 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota RUSH

This section contains 4 genuine Toyota parts for the STEERING WHEEL system of the Toyota RUSH. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, BOLT, STEERING LOCK SET.
