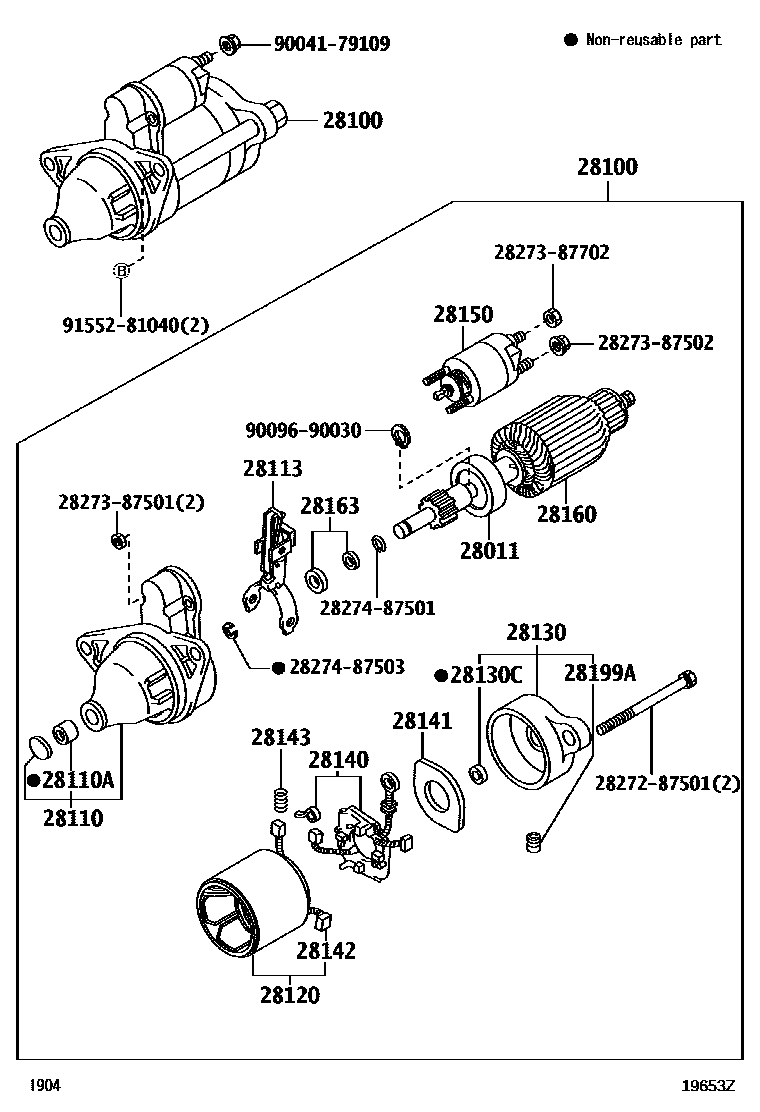

Toyota RUSH — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 0.8KW
28110HOUSING ASSY, STARTER DRIVE
28110ABEARING(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
28141INSULATOR, BRUSH HOLDER
28142BRUSH, STARTER
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28163NUT OR COLLAR, PINION STOP, STARTER
28199APROTECTOR, DUST STARTER
2827287501
main28272-87501
2827387501
main28273-87501
2827387502
main28273-87502
2827387702
main28273-87702
2827487501SNAP RING, STARTER, NO.1
main28274-87501
2827487503SNAP RING, STARTER, NO.1
main28274-87503
9004179109
main90041-79109
9009690030
main90096-90030
9155281040
main91552-81040
25 parts on this diagram · 2 diagrams in section
STARTER for Toyota RUSH
This section contains 27 genuine Toyota parts for the STARTER system of the Toyota RUSH. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, BUSH OR BEARING, PLANET CARRIER SHAFT, STARTER ASSY, HOUSING ASSY, STARTER DRIVE.
