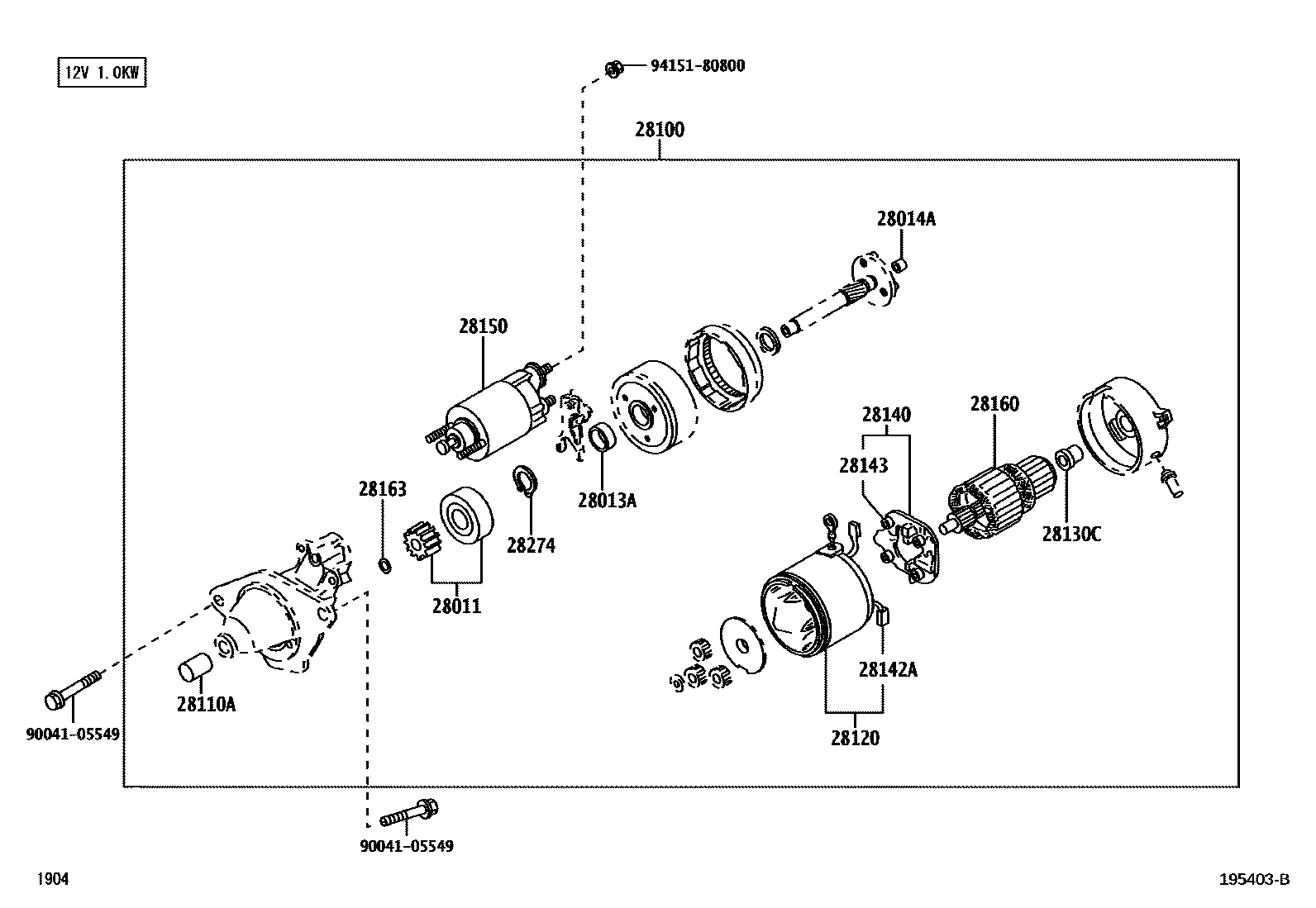

Toyota RUSH — STARTER
28011CLUTCH SUB-ASSY, STARTER
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
28100STARTER ASSY
12V 1.0KW
28110ABEARING(FOR STARTER HOUSING)
28120YOKE ASSY, STARTER
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28163NUT OR COLLAR, PINION STOP, STARTER
28274SNAP RING, STARTER, NO.1
9004105549
main90041-05549
9415180800
main94151-80800
16 parts on this diagram · 1 diagram in section
