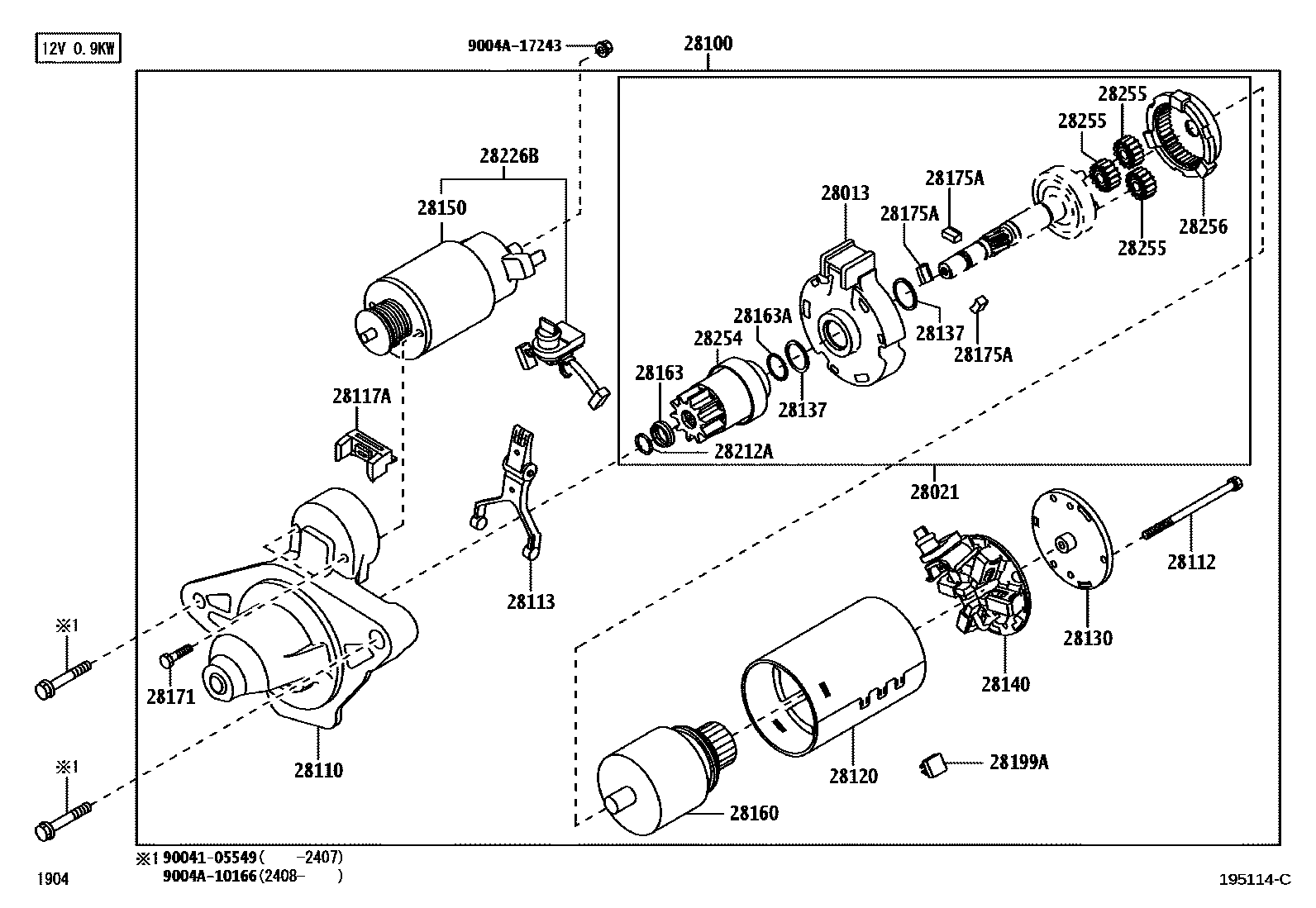

Toyota RUSH — STARTER

0001 1 0003 1

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28126-BZ010i2NRVE..F800..MID..PH201712-202305

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-BZ050i2NRVE..F800..IDN201712-202108

28100STARTER ASSY

main28100-B0010i2NRVE..F800..IDN202108

12V 1.0KW

main28100-BZ200i2NRVE..F800..MID..PH201712-202305

12V 0.9KW

28110HOUSING ASSY, STARTER DRIVE

main28110-BZ170i2NRVE..F800..IDN201712-202108

28112BOLT, HOUSING SET

main9004B-10018×3i2NRVE..F800..IDN201712-202108

28113LEVER, STARTER PINION DRIVE

main28113-BZ030i2NRVE..F800..IDN201712-202108

28117ASEAL, RUBBER

main28117-BZ010i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,VN201712

28120YOKE ASSY, STARTER

main28120-B1010i2NRVE..F800..IDN202108

main28120-BZ090i2NRVE..F800..IDN201712-202108

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-BZ140i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,VN201712

28137WASHER, FELT, STARTER

main9004B-20007×2i2NRVE..F800..IDN201712-202108

28140HOLDER ASSY, STARTER BRUSH

main28140-B2130i2NRVE..F800..IDN202108

main28140-BZ140i2NRVE..F800..MID..PH201712-202305

28150SWITCH ASSY, MAGNET STARTER

main28150-B6010i2NRVE..F800..IDN202108

main28150-BZ030i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,VN201712

28160ARMATURE ASSY, STARTER

main28160-87208i2NRVE..F800..IDN202108

main28160-BZ040i2NRVE..F800..IDN201712-202108

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-87202i2NRVE..F800..IDN202108

main28163-BZ140i2NRVE..F800..IDN201712-202108

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main9004B-52011i2NRVE..F800..IDN201712-202108

28171BOLT, STARTER

main9004B-10015×2i2NRVE..F800..IDN201712-202108

28175AGASKET, MAGNET SWITCH COVER

main9004B-43001×3i2NRVE..F800..MID..PH201712-202305

28199APROTECTOR, DUST STARTER

main28199-BZ140i2NRVE..F800..IDN201712-202108

28212ARING, SNAP, STARTER CLUTCH HOUSING DISC

main9004B-52012i2NRVE..F800..IDN201712-202108

28226BSTARTER KIT, REPAIR SERVICE

main28226-BZ010i2NRVE..F800..IDN201712-202108

28254PINION, STARTER IDLE GEAR

main28254-BZ060i2NRVE..F800..IDN201712-202108

28255GEAR, PLANET

main28255-BZ140×3i2NRVE..F800..IDN201712-202108

28256GEAR, STARTER INTERNAL

main28256-BZ020i2NRVE..F800..IDN201712-202108

9004105549

main90041-05549

9004A10166

main9004A-10166

9004A17243

main9004A-17243

26 parts on this diagram · 2 diagrams in section
