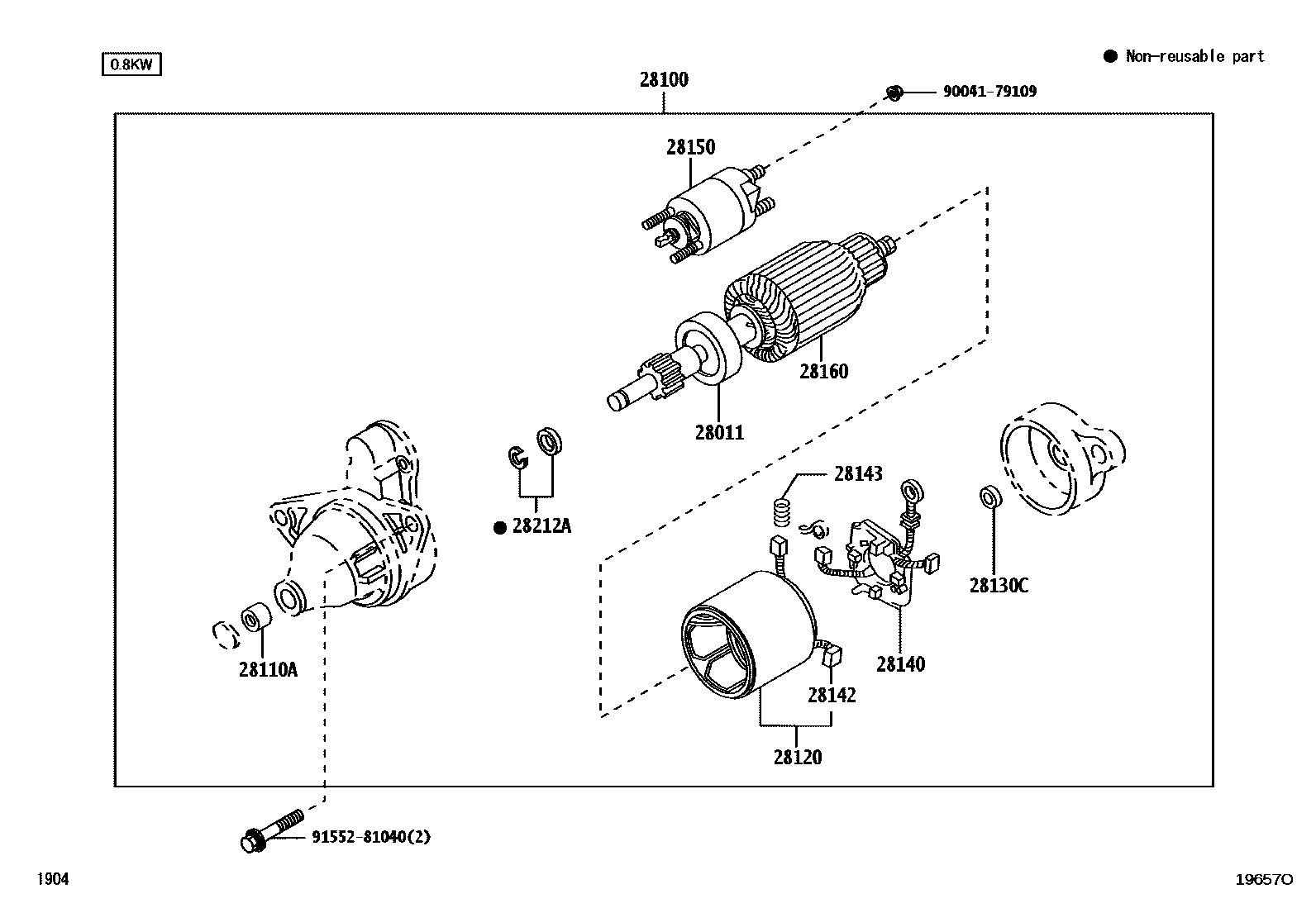

Toyota RUSH — STARTER

0001 112V 0.8KW 0002 112V 0.9KW

28011CLUTCH SUB-ASSY, STARTER

main28011-BZ020i3SZVE..F700200612-201009

main28011-BZ060i3SZVE..F700201503

28100STARTER ASSY

main28100-BZ020i3SZVE..F700200612-201009

12V 0.8KW

main28100-BZ220i3SZVE..F700201503

12V 0.9KW

28110HOUSING ASSY, STARTER DRIVE

main28110-BZ070i3SZVE..F700201503

28110ABEARING(FOR STARTER HOUSING)

main9004B-03004i3SZVE..F700200612-201009

28120YOKE ASSY, STARTER

main28120-BZ010i3SZVE..F700200612-201009

main28120-BZ040i3SZVE..F700201503

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-BZ140i3SZVE..F700201503

28130CBEARING, STARTER FLANGE

main9004B-03004i3SZVE..F700200612-201009

28140HOLDER ASSY, STARTER BRUSH

main28140-BZ140i3SZVE..F700201503

main28149-BZ010i3SZVE..F700200612-201009

28142BRUSH, STARTER

main28142-87504×4i3SZVE..F700200808-201009

main28142-BZ010×4i3SZVE..F700200612-200808

28143SPRING, STARTER BRUSH

main28143-BZ010×4i3SZVE..F700200612-201009

28150SWITCH ASSY, MAGNET STARTER

main28150-BZ010i3SZVE..F700200612-201009

main28150-BZ040i3SZVE..F700201503

28160ARMATURE ASSY, STARTER

main28160-BZ020i3SZVE..F700200612-201009

main28160-BZ040i3SZVE..F700201503

28212ARING, SNAP, STARTER CLUTCH HOUSING DISC

main28142-87505i3SZVE..F700200808-201009

main28142-BZ012i3SZVE..F700200612-200808

main9004B-52012i3SZVE..F700201503

9004179109

main90041-79109

9155281040

main91552-81040

15 parts on this diagram · 2 diagrams in section
