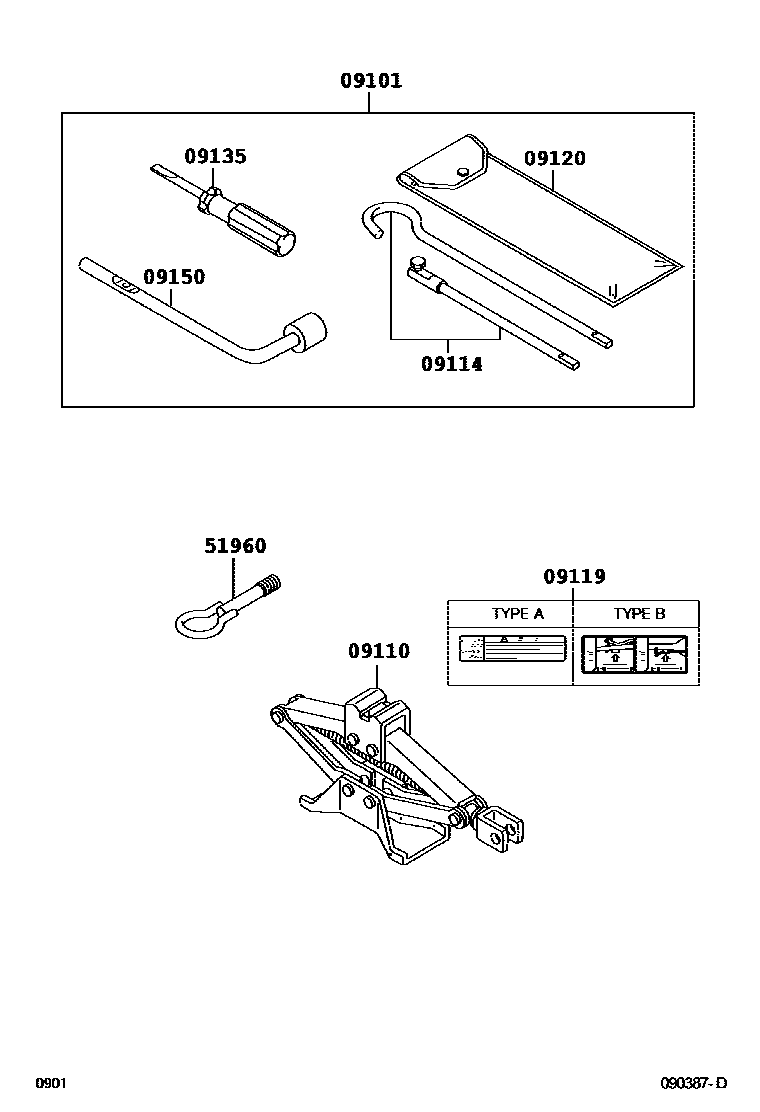

Toyota RUSH — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-B4010i200811-200911

main09101-B4011i201605

09110JACK ASSY

main09111-B4011i200811-200906

MASS = 1.8 KG

main09111-B4012i200906

MASS = 1.5 KG

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-B4010i200811

09119LABEL, JACK CAUTION

main09119-97202i200906

TYPE A

main09119-B4020i200811-200906

TYPE A

main09119-B4021i200906

TYPE B

main09119-B4040i200811-200906

TYPE B

09120BAG, TOOL

main09120-B4010i200811-200911

main09120-B4011i201605

09135DRIVER, SCREW

main09135-B4010i200811

09150WRENCH, HUB NUT BOX

main09151-B4010i200811

51960HOOK ASSY, FRONT

main51960-B4010×2i200811

L=180.6 M22X2.5

8 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota RUSH

This section contains 8 genuine Toyota parts for the STANDARD TOOL system of the Toyota RUSH. Key components include: TOOL SET, STANDARD W/O JACK, JACK ASSY, EXTENSION SUB-ASSY, JACK HANDLE, LABEL, JACK CAUTION, BAG, TOOL.
