Toyota RUSH — STANDARD TOOL

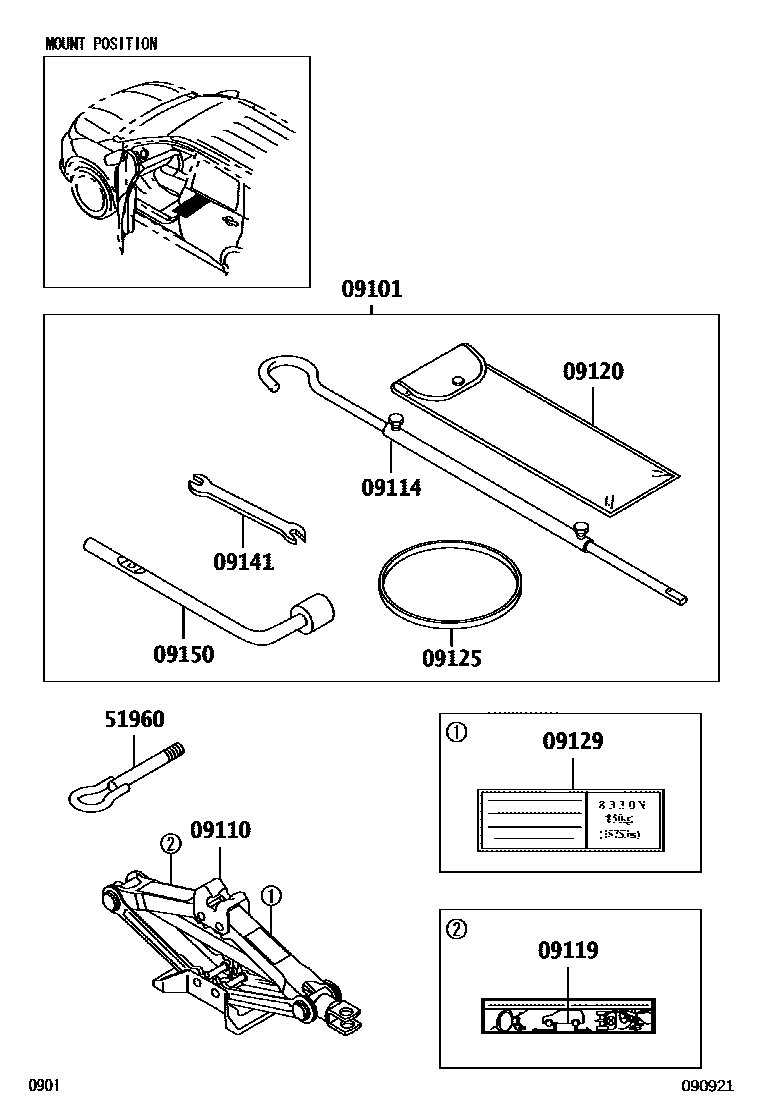

Parts diagram

09101TOOL SET, STANDARD W/O JACK

main09101-BZ270i201812-201911

main09101-BZ290i201912-202310

09110JACK ASSY

main09111-BZ250i201812-202310

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-BZ110i201812-201911

main09114-BZ120i201912-202310

09119LABEL, JACK CAUTION

main09119-BZ290i201812-202310

09120BAG, TOOL

main09120-BZ150i201912-202310

main09120-BZ180i201812-201911

09125BAND, TOOL BAG

main09125-BZ010×2i201812-201911

main09125-BZ050×2i201912-202310

09129LABEL, JACK CAUTION

main09119-BZ020i201812-202310

09141SPANNER

main09141-87Z11i201812-201911

10 X 12

main09141-BZ070i201912-202310

10 X 12

09150WRENCH, HUB NUT BOX

main09150-BZ020i201812-201911

main09150-BZ030i201912-202310

51960HOOK ASSY, FRONT

main51960-BZ230i201812-202310

10 parts on this diagram · 1 diagram in section
