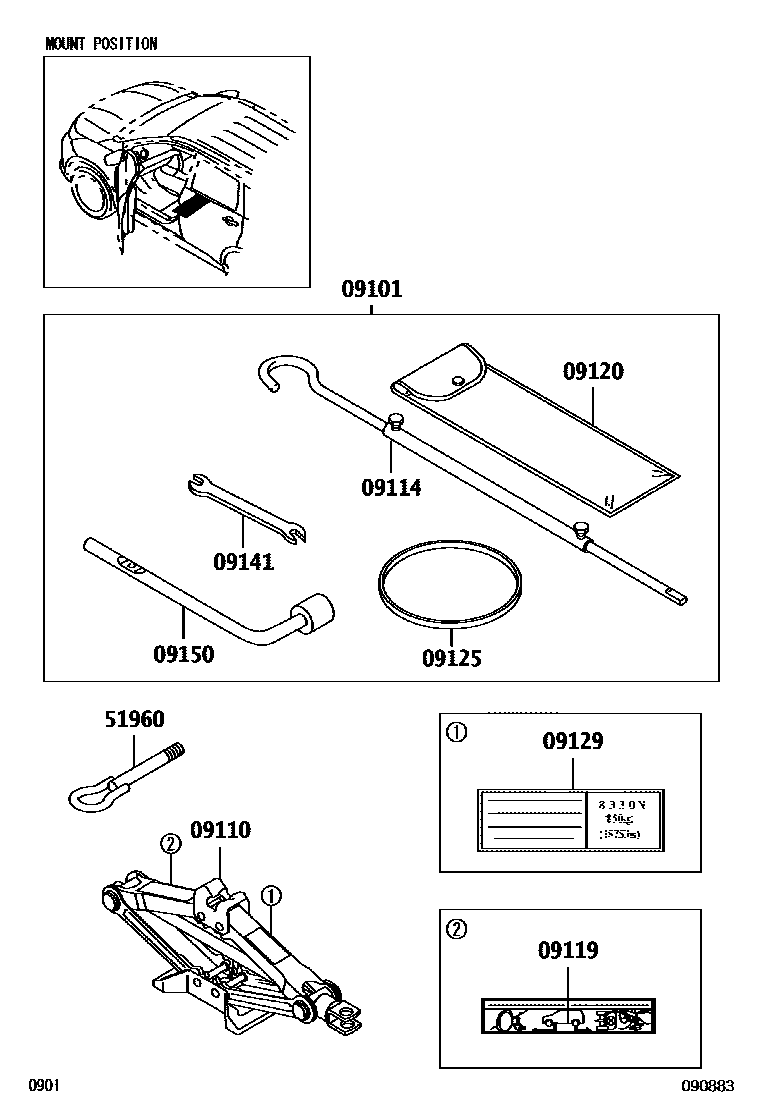

Toyota RUSH — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-BZ270iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

09110JACK ASSY

main09111-BZ250iF800..MID..PH201712-202305

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-BZ110iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

09119LABEL, JACK CAUTION

main09119-BZ290iF800..IDN201712

main09119-BZ300iF800..MID..PH201804-202305

09120BAG, TOOL

main09120-BZ180iF800..MID..PH201712-202305

09125BAND, TOOL BAG

main09125-BZ010×2iF800..MID..PH201712-202305

09129LABEL, JACK CAUTION

main09119-BZ020iF800..IDN201712

main09119-BZ070iF800..MID..PH201804-202305

09141SPANNER

main09141-87Z11iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

10 X 12

09150WRENCH, HUB NUT BOX

main09150-BZ020iF800..MID..PH201712-202305

51960HOOK ASSY, FRONT

main51960-BZ230iF800..MID..PH201712-202305

10 parts on this diagram · 1 diagram in section
