Toyota RUSH — STANDARD TOOL

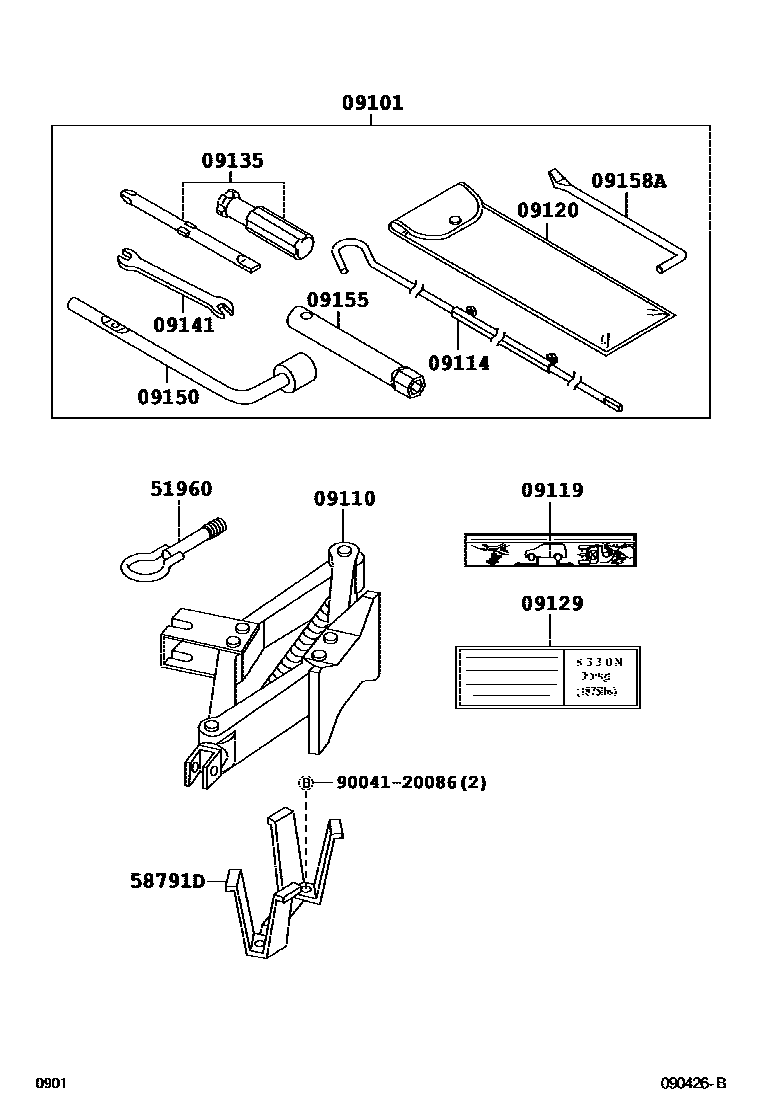

Parts diagram

09101TOOL SET, STANDARD W/O JACK

main09101-BZ080i200612-201009

09110JACK ASSY

main09111-BZ120i200612-201003

main09111-BZ121i201004-201009

main09111-BZ122i201604

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-BZ020i200612-201009

09119LABEL, JACK CAUTION

main09119-BZ120i200612-201009

09120BAG, TOOL

main09120-BZ050i200612-201009

09129LABEL, JACK CAUTION

main09119-BZ020i200612-201009

09135DRIVER, SCREW

main09135-87Z10i200612-201009

09141SPANNER

main09141-87Z11i200612-201009

10 X 12

09150WRENCH, HUB NUT BOX

main09150-87Z01i200612-201009

main09150-BZ040i201306-201503

09155WRENCH, SPARK PLUG

main09155-BZ010i200612-201009

09158AHANDLE, SPARK PLUG WRENCH

main09158-87Z04i200612-201009

51960HOOK ASSY, FRONT

main51960-BZ060×2i200612-200906

58791DCARRIER, JACK

main58791-BZ010i200612-201009

9004120086

main90041-20086

14 parts on this diagram · 1 diagram in section
