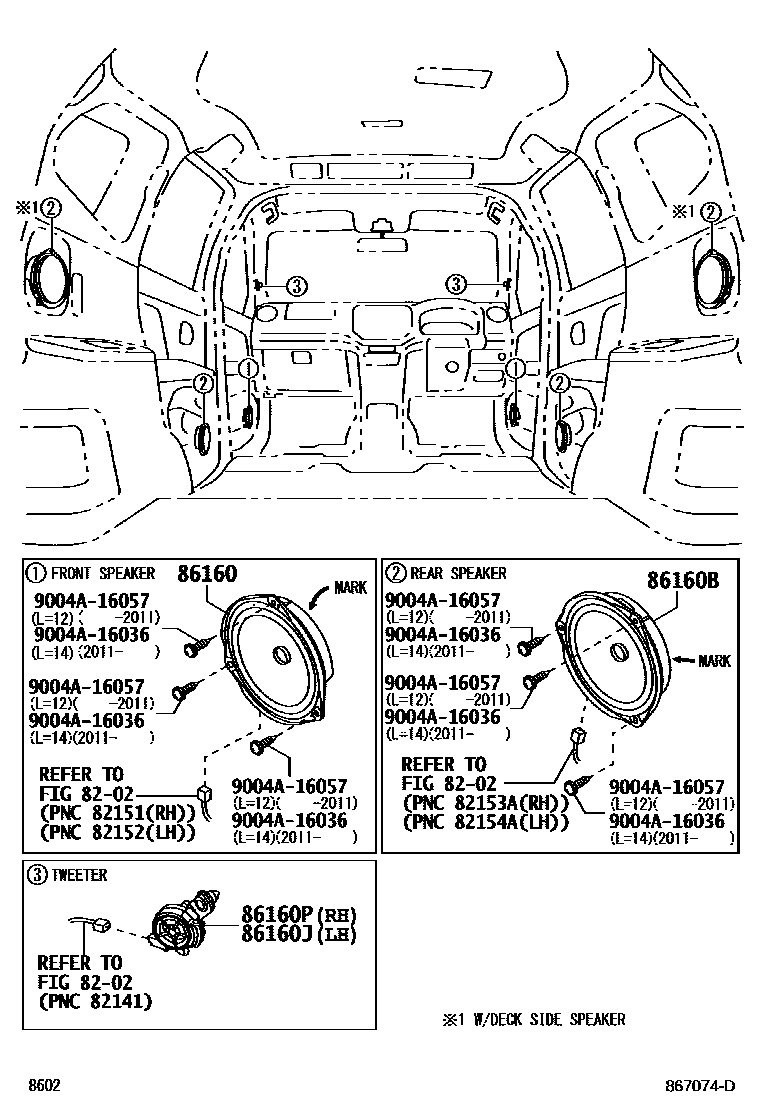

Toyota RUSH — SPEAKER

8202

86160SPEAKER ASSY, FRONT NO.1

main86160-BZ180×2iF800..MID..PH201712-202305

W/PART NUMBER MARK

main86160-BZ240×2iF800201712-202103

W/PART NUMBERMARK

main86160-BZ241×2iF800..HI..PH;F800..GCC,GEN,IDN,VN202104

W/PART NUMBERMARK

86160BSPEAKER ASSY, REAR

main86160-BZ180×2iF800..MID..(GCC,GEN,IDN,VN)201712

W/PART NUMBER MARK

main86160-BZ240×2iF800..MID201712-202103

W/PART NUMBERMARK

main86160-BZ241×4iF800..LHD..HI..GEN202104

W/PART NUMBERMARK

86160JSPEAKER ASSY, FRONT NO.3

main86150-BZ110iF800..MID..PH201712-202305

86160PSPEAKER ASSY, FRONT NO.2

main86150-BZ100iF800..MID..PH201712-202305

9004A16036

main9004A-16036

9004A16057

main9004A-16057

7 parts on this diagram · 1 diagram in section
