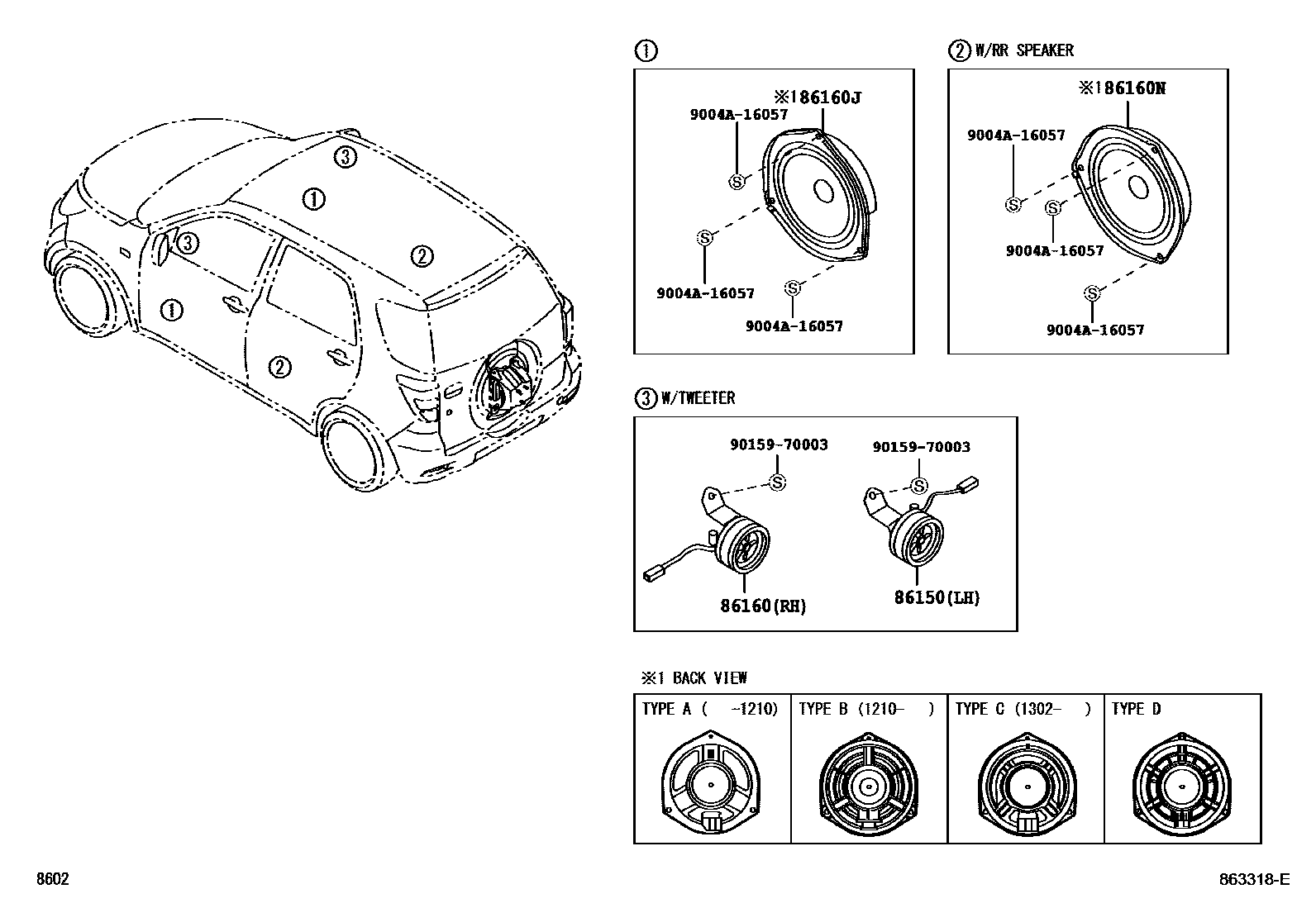

Toyota RUSH — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-BZ050iF700200612-201009

LH

86160SPEAKER ASSY, FRONT NO.1

main86150-BZ040iF700200612-201009

RH

86160JSPEAKER ASSY, FRONT NO.3

main86160-BZ010×2iF700200612-200708

main86160-BZ120×2iF700200709-201009

main86160-BZ180×2iF700201503

TYPE B

main86160-BZ190×2iF700201503-201510

TYPE C

main86160-BZ240×2iF700201510

TYPE D

sub86160-BZ241

86160NSPEAKER ASSY, STEREO COMPONENT, REAR

main86160-BZ010×2iF700200612-200708

main86160-BZ120×2iF700200709-201009

main86160-BZ180×2iF700201210-201503

TYPE B

main86160-BZ190×2iF700201503-201510

TYPE C

main86160-BZ240×2iF700201510

TYPE D

sub86160-BZ241

9004A16057

main9004A-16057

9015970003

main90159-70003

6 parts on this diagram · 1 diagram in section
