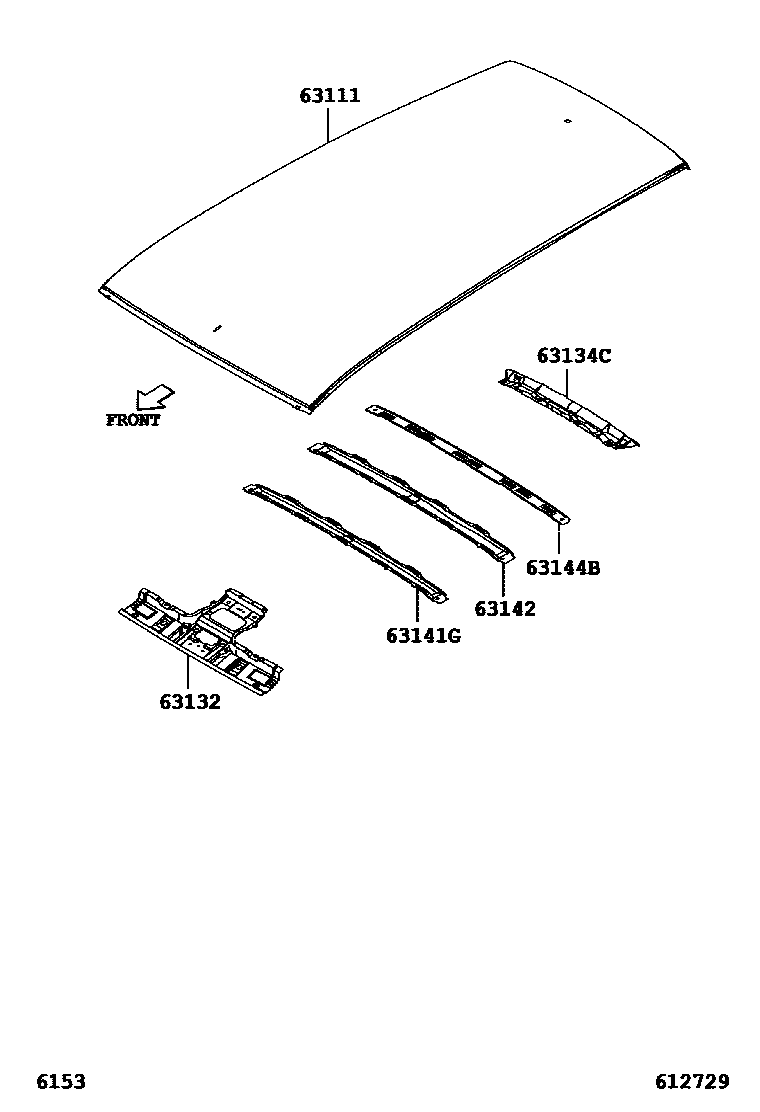

Toyota RUSH — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF RACK

63111PANEL, ROOF

main63111-BZ070iF700200612-201009

main63111-BZ250iF700201503

63132PANEL, WINDSHIELD HEADER, INNER

main63132-BZ050iF700200612-201009

63134CFRAME, BACK DOOR OPENING, INNER

main63134-BZ040iF700200612-201009

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-BZ040iF700200612-201009

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-BZ030iF700200612-201009

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-BZ020iF700200612-201009

6 parts on this diagram · 2 diagrams in section
