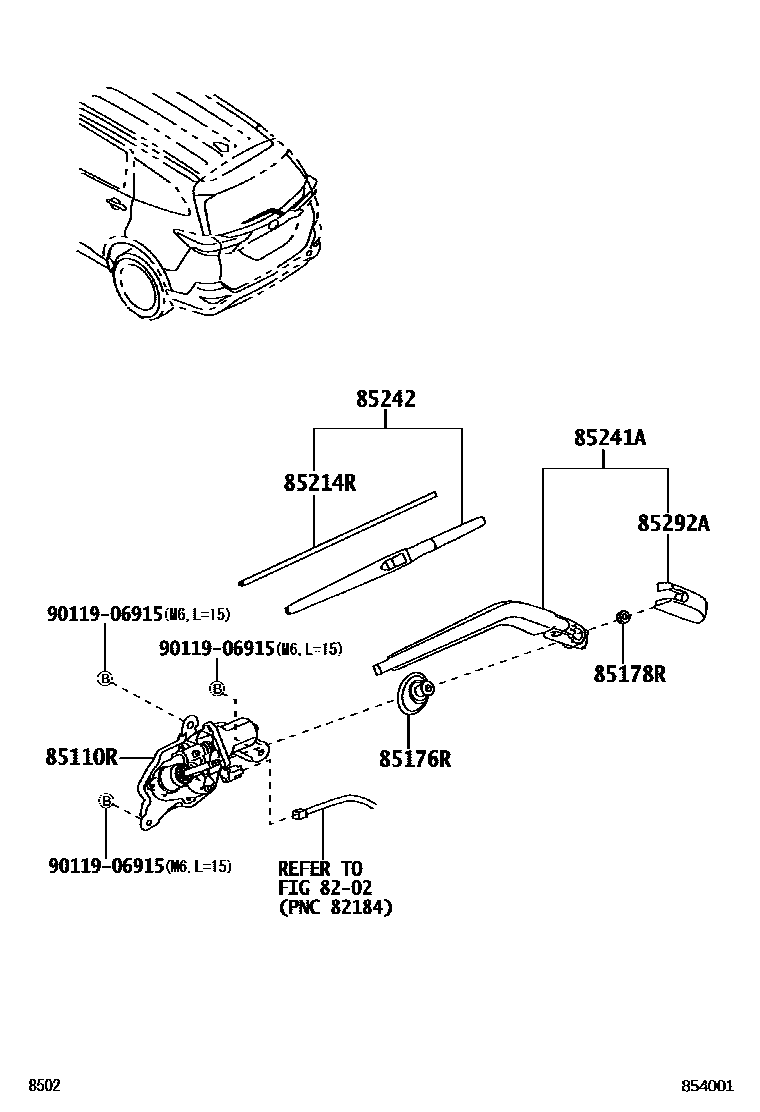

Toyota RUSH — REAR WIPER

8202WIRING & CLAMP

→ Go to FIG 82-02

85110RMOTOR ASSY, REAR WIPER

main85130-BZ210i201812-202310

85176RCAP, REAR WIPER LINK

main85176-BZ110i201812-202310

85178RNUT (FOR REAR WIPER ARM SETTING)

main94130-60640i201812-202310

85214RRUBBER, REAR WIPER

main85243-BZ080i201812-202310

85241AARM, REAR WIPER

main85241-BZ150i201812-202310

85242BLADE, RR WIPER

main85242-BZ160i201812-202310

85292ACAP, REAR WIPER ARM HEAD

main85292-BZ080i201812-202310

9011906915

main90119-06915

9 parts on this diagram · 1 diagram in section

REAR WIPER for Toyota RUSH

This section contains 9 genuine Toyota parts for the REAR WIPER system of the Toyota RUSH. Key components include: WIRING & CLAMP, MOTOR ASSY, REAR WIPER, CAP, REAR WIPER LINK, NUT (FOR REAR WIPER ARM SETTING), RUBBER, REAR WIPER.
